AArch64 Page Fault Handling

This document covers every aspect of page fault handling on AArch64 (ARM64) Linux, from the hardware trigger down to the kernel resolution and return, with references to the actual kernel source code (v7.2-rc5).

---

0. What Is a Page Fault?

In Linux, the actual physical allocation of userland memory occurs not on mapping but when a page fault occurs on access to that memory. A page fault arises when a user attempts to access virtual memory that either does not have a valid page table mapping or for which the page table mapping does not allow the attempted action (e.g. writing to a read-only mapping).

The page faults themselves arise due to the computer’s Memory Management Unit (MMU) detecting an invalid access. The kernel can tell the hardware to invoke its handler when this occurs and modern hardware permits the mapping to be corrected, i.e. ‘fixing up’ the page fault, if the kernel deems the access to have been valid.

When page faults occur at an address contained within a valid mapping, the kernel is then able to ‘back’ this memory by performing the physical allocation of that memory and updating the page table mapping to correctly reference it. Doing so is termed demand paging because the actual allocation of memory occurs on demand rather than on mapping.

When this occurs, the pages are said to be ‘faulted in’ (which we can further subdivide into ‘read faulting’ and ‘write faulting’). Note that a page fault can be pre-triggered when using mmap() via the MAP_POPULATE flag. This is, from the kernel’s point of view, equivalent to write faulting them in.

The page fault mechanism permits a disconnect between mapping userland memory and both allocating physical memory and establishing page table mappings to it — all that is required for userland memory to be valid is for the range to be contained within a VMA with the appropriate flags.

Broadly speaking there are two types of page faults:

1. Anonymous page faults — arising for anonymous mappings (heap, stack, mmap(MAP_ANONYMOUS)). These allocate physical memory to back them.
2. File-backed page faults — arising for file-backed mappings. These check the page cache to see if the file data is already available and map to that if so; if not, invoke filesystem functionality to place the data into the page cache before mapping it.

Complexity arises around swap, page migration and NUMA balancing, each of which result in specific actions being taken on page faults.

---

1. Who Triggers a Page Fault — Software or Hardware?

The MMU (Memory Management Unit) hardware triggers the page fault. It is NOT software.

On AArch64, the MMU is an integral part of the CPU core itself (not a separate chip). When any instruction attempts to access a virtual address, the MMU performs a hardware page table walk to translate the virtual address to a physical address. The MMU walks through up to 4 levels of page tables (on a 48-bit VA / 4KB page configuration):

Virtual Address
    |
    +-- bits [47:39] --> Level 0 (PGD) --> 512 entries, each covers 512GB
    +-- bits [38:30] --> Level 1 (PUD) --> 512 entries, each covers 1GB
    +-- bits [29:21] --> Level 2 (PMD) --> 512 entries, each covers 2MB
    +-- bits [20:12] --> Level 3 (PTE) --> 512 entries, each covers 4KB
    +-- bits [11:0]  --> Page Offset   --> byte offset within the 4KB page

The page table base is stored in:

• TTBR0_EL1 — for user-space addresses (lower half, typically 0x0000_0000_0000_0000 to 0x0000_FFFF_FFFF_FFFF)
• TTBR1_EL1 — for kernel addresses (upper half, typically 0xFFFF_0000_0000_0000 to 0xFFFF_FFFF_FFFF_FFFF)

The CPU selects which TTBR to use based on the upper bits of the virtual address (bit 55 in a 48-bit VA configuration).

When Does the MMU Raise a Fault?

The MMU raises a synchronous exception (data abort or instruction abort) when:

1. Translation Fault (FSC 0x04–0x07): A page table descriptor at any level has bit 0 (PTE_VALID) clear – meaning “no mapping exists.” This is the classic demand paging case.

2. Access Flag Fault (FSC 0x08–0x0B): The descriptor exists and is valid, but the Access Flag (bit 10, PTE_AF) is clear. ARM64 uses this for tracking whether a page has been accessed.

3. Permission Fault (FSC 0x0C–0x0F): The mapping exists, but the access violates permissions:

   • Writing to a page with PTE_RDONLY (bit 7) set
   • User (EL0) accessing a page without PTE_USER (bit 6) set
   • Executing from a page with PTE_UXN (bit 54) or PTE_PXN (bit 53) set

These fault types are encoded in the FSC (Fault Status Code), bits [5:0] of the ESR_EL1 register. The lower 2 bits encode the page table level (0–3) at which the fault occurred.

Reference: arch/arm64/include/asm/esr.h

#define ESR_ELx_FSC        (0x3F)    /* Fault Status Code mask */
#define ESR_ELx_FSC_TYPE   (0x3C)    /* Upper 4 bits = fault type */
#define ESR_ELx_FSC_LEVEL  (0x03)    /* Lower 2 bits = page table level */
#define ESR_ELx_FSC_ACCESS (0x08)    /* Access flag fault base */
#define ESR_ELx_FSC_FAULT  (0x04)    /* Translation fault base */
#define ESR_ELx_FSC_PERM   (0x0C)    /* Permission fault base */

PTE Bit Layout (Hardware-Defined)

Reference: arch/arm64/include/asm/pgtable-hwdef.h

Bit(s)	Name	Meaning
0	PTE_VALID	Valid bit – if clear, MMU raises translation fault
[1:0]=0b11	PTE_TYPE_PAGE	Identifies a 4KB page descriptor
[4:2]	PTE_ATTRINDX	Memory attribute index into MAIR register
6	PTE_USER	AP[1] – if set, EL0 (user) can access
7	PTE_RDONLY	AP[2] – if set, page is read-only
[9:8]	PTE_SHARED	Shareability (inner shareable for SMP)
10	PTE_AF	Access Flag – if clear, first access raises access flag fault
11	PTE_NG	not-Global (ASID-tagged in TLB)
51	PTE_DBM	Dirty Bit Management (hardware dirty tracking)
53	PTE_PXN	Privileged Execute Never
54	PTE_UXN	User Execute Never

Software-defined bits (used by Linux, invisible to MMU hardware):

Reference: arch/arm64/include/asm/pgtable-prot.h

Bit	Name	Meaning
51	PTE_WRITE	Software writable flag (aliased to DBM bit)
55	PTE_DIRTY	Software dirty bit
56	PTE_SPECIAL	Special mapping (VM_PFNMAP, etc.)

---

2. How the CPU Detects “This Should Be a Page Fault”

The detection is entirely in hardware and happens on every memory access. Here is the exact sequence:

Step-by-Step Hardware Sequence

1. CPU core executes LDR X0, [X1]  (or any memory-accessing instruction)
                |
2. MMU receives the virtual address from X1
                |
3. MMU checks TLB (Translation Lookaside Buffer) first
   +-- TLB HIT:  Use cached translation, check permissions -> done
   +-- TLB MISS: Start hardware page table walk
                |
4. MMU reads TTBR0_EL1 (user addr) or TTBR1_EL1 (kernel addr)
   to get the base physical address of Level 0 page table
                |
5. MMU walks Level 0 -> Level 1 -> Level 2 -> Level 3
   At EACH level, the MMU checks:
   +-- Is descriptor valid? (bit 0)  -> NO: Translation Fault at this level
   +-- Is it a block/section?        -> YES: Check permissions, done
   +-- Is it a table descriptor?     -> YES: Follow pointer to next level
                |
6. At the final level (PTE), the MMU checks:
   +-- Is PTE_VALID set?       -> NO:  Translation fault (FSC 0x07)
   +-- Is PTE_AF set?          -> NO:  Access flag fault (FSC 0x0B)
   +-- Permission check:
   |   +-- Write to RDONLY?    -> YES: Permission fault (FSC 0x0F)
   |   +-- EL0 without USER?  -> YES: Permission fault (FSC 0x0F)
   |   +-- Execute with UXN?  -> YES: Permission fault (FSC 0x0F)
   +-- All checks pass         -> Translation succeeds, access physical memory

What the CPU Does When a Fault is Detected

When the MMU detects a fault condition, the CPU hardware automatically performs these steps in a single atomic operation (no software involvement yet):

1. Saves the current PC -> ELR_EL1 (Exception Link Register)
   • This is the address of the faulting instruction, so it can be retried later
2. Saves the current PSTATE -> SPSR_EL1 (Saved Program Status Register)
   • This includes the exception level (EL0 or EL1), interrupt masks, condition flags
3. Writes fault information -> ESR_EL1 (Exception Syndrome Register)
   • EC field [31:26]: Exception Class (0x24 = data abort from EL0, 0x25 = from EL1)
   • WnR bit [6]: Whether the access was a write (1) or read (0)
   • FSC bits [5:0]: The specific fault type and level
4. Saves the faulting virtual address -> FAR_EL1 (Fault Address Register)
5. Switches to EL1 (if coming from EL0) – this is the user->kernel mode switch
6. Sets PSTATE.DAIF to mask certain exceptions
7. Jumps to the exception vector – reads VBAR_EL1 + offset

All of this is pure hardware – no software has executed yet.

---

3. How the CPU Knows Which Handler to Call

The Vector Base Address Register (VBAR_EL1)

The CPU does NOT know which “handler” to call. It only knows one thing: jump to VBAR_EL1 + offset. The offset depends on:

• Where the exception came from (EL0 or EL1)
• The type of exception (synchronous, IRQ, FIQ, SError)
• The execution state of the lower EL (AArch64 or AArch32)

VBAR_EL1 is Set During Boot

Reference: arch/arm64/kernel/head.S

adr_l   x8, vectors          /* load address of vector table */
msr     vbar_el1, x8          /* program VBAR_EL1 */
isb                           /* instruction sync barrier */

This tells the CPU: “When any exception occurs at EL1, jump to the vectors symbol plus an offset.”

The Exception Vector Table Layout

Reference: arch/arm64/kernel/entry.S

The vector table is 2KB-aligned and has 16 entries, each 128 bytes (32 instructions) apart:

VBAR_EL1 + 0x000: EL1t Sync   (EL1 using SP_EL0 -- not used in Linux)
VBAR_EL1 + 0x080: EL1t IRQ
VBAR_EL1 + 0x100: EL1t FIQ
VBAR_EL1 + 0x180: EL1t SError

VBAR_EL1 + 0x200: EL1h Sync   <-- KERNEL page fault lands here
VBAR_EL1 + 0x280: EL1h IRQ
VBAR_EL1 + 0x300: EL1h FIQ
VBAR_EL1 + 0x380: EL1h SError

VBAR_EL1 + 0x400: EL0_64 Sync <-- USER page fault lands here
VBAR_EL1 + 0x480: EL0_64 IRQ
VBAR_EL1 + 0x500: EL0_64 FIQ
VBAR_EL1 + 0x580: EL0_64 SError

VBAR_EL1 + 0x600: EL0_32 Sync (32-bit/AArch32 compat)
VBAR_EL1 + 0x680: EL0_32 IRQ
VBAR_EL1 + 0x700: EL0_32 FIQ
VBAR_EL1 + 0x780: EL0_32 SError

The actual kernel code:

SYM_CODE_START(vectors)
    kernel_ventry  1, t, 64, sync     // EL1t Sync
    kernel_ventry  1, t, 64, irq
    kernel_ventry  1, t, 64, fiq
    kernel_ventry  1, t, 64, error

    kernel_ventry  1, h, 64, sync     // EL1h Sync -- kernel faults
    kernel_ventry  1, h, 64, irq
    kernel_ventry  1, h, 64, fiq
    kernel_ventry  1, h, 64, error

    kernel_ventry  0, t, 64, sync     // EL0 64-bit Sync -- user faults
    kernel_ventry  0, t, 64, irq
    kernel_ventry  0, t, 64, fiq
    kernel_ventry  0, t, 64, error

    kernel_ventry  0, t, 32, sync     // EL0 32-bit (compat)
    kernel_ventry  0, t, 32, irq
    kernel_ventry  0, t, 32, fiq
    kernel_ventry  0, t, 32, error
SYM_CODE_END(vectors)

A page fault is a synchronous exception. So:

• User-space page fault: CPU jumps to VBAR_EL1 + 0x400 -> el0t_64_sync
• Kernel page fault: CPU jumps to VBAR_EL1 + 0x200 -> el1h_64_sync

At this point the CPU has done its job – everything from here is software (kernel code).

---

4. The Handler IS Kernel Software – How the Kernel Distinguishes Fault Types

4.1 Assembly Entry: Save State and Call C

The kernel_ventry macro (128 bytes per entry) does minimal work: reserves stack space for register save area and branches to the real handler stub.

Reference: arch/arm64/kernel/entry.S – entry_handler macro

.macro entry_handler el:req, ht:req, regsize:req, label:req
SYM_CODE_START_LOCAL(el\el\ht\()_\regsize\()_\label)
    kernel_entry \el, \regsize         // Save ALL 31 GPRs + ELR + SPSR to stack
    mov  x0, sp                        // x0 = pointer to pt_regs (C arg 1)
    bl   el\el\ht\()_\regsize\()_\label\()_handler  // Call C handler
    .if \el == 0
    b    ret_to_user                   // Return to userspace
    .else
    b    ret_to_kernel                 // Return to kernel
    .endif
SYM_CODE_END(...)
.endm

This generates two critical stubs:

• el0t_64_sync -> calls el0t_64_sync_handler() in C -> then ret_to_user
• el1h_64_sync -> calls el1h_64_sync_handler() in C -> then ret_to_kernel

The kernel_entry macro saves the complete CPU state: all 31 general-purpose registers, ELR_EL1, SPSR_EL1, and the original SP_EL0 (user stack pointer) into a struct pt_regs on the kernel stack.

4.2 C Handler: Read ESR and Dispatch by Exception Class

Now we are in C code. The kernel reads the ESR register to find out what kind of synchronous exception this is.

Reference: arch/arm64/kernel/entry-common.c

For user-space exceptions – el0t_64_sync_handler():

asmlinkage void noinstr el0t_64_sync_handler(struct pt_regs *regs)
{
    unsigned long esr = read_sysreg(esr_el1);   // Read ESR_EL1

    switch (ESR_ELx_EC(esr)) {                  // Extract EC field [31:26]
    case ESR_ELx_EC_DABT_LOW:                   // 0x24 = Data abort from EL0
        el0_da(regs, esr);
        break;
    case ESR_ELx_EC_IABT_LOW:                   // 0x20 = Instruction abort from EL0
        el0_ia(regs, esr);
        break;
    case ESR_ELx_EC_SVC64:                      // 0x15 = System call (SVC)
        el0_svc(regs);
        break;
    /* ... other exception classes ... */
    }
}

For kernel exceptions – el1h_64_sync_handler():

asmlinkage void noinstr el1h_64_sync_handler(struct pt_regs *regs)
{
    unsigned long esr = read_sysreg(esr_el1);

    switch (ESR_ELx_EC(esr)) {
    case ESR_ELx_EC_DABT_CUR:                   // 0x25 = Data abort from EL1
    case ESR_ELx_EC_IABT_CUR:                   // 0x21 = Instruction abort from EL1
        el1_abort(regs, esr);
        break;
    /* ... */
    }
}

The EC values that identify page faults:

Reference: arch/arm64/include/asm/esr.h

EC Value	Constant	Meaning
0x20	ESR_ELx_EC_IABT_LOW	Instruction abort from user (EL0)
0x21	ESR_ELx_EC_IABT_CUR	Instruction abort from kernel (EL1)
0x24	ESR_ELx_EC_DABT_LOW	Data abort from user (EL0)
0x25	ESR_ELx_EC_DABT_CUR	Data abort from kernel (EL1)

4.3 Reading the Faulting Address and Calling do_mem_abort()

User data abort – el0_da():

static void noinstr el0_da(struct pt_regs *regs, unsigned long esr)
{
    unsigned long far = read_sysreg(far_el1);   // Read faulting virtual address
    arm64_enter_from_user_mode(regs);            // Context tracking, RCU, etc.
    local_daif_restore(DAIF_PROCCTX);            // Re-enable interrupts
    do_mem_abort(far, esr, regs);                // THE CENTRAL DISPATCHER
    arm64_exit_to_user_mode(regs);               // Prepare return to user
}

Kernel abort – el1_abort():

static void noinstr el1_abort(struct pt_regs *regs, unsigned long esr)
{
    unsigned long far = read_sysreg(far_el1);
    irqentry_state_t state;
    state = arm64_enter_from_kernel_mode(regs);
    local_daif_inherit(regs);
    do_mem_abort(far, esr, regs);
    arm64_exit_to_kernel_mode(regs, state);
}

Both paths converge at do_mem_abort().

4.4 The fault_info[] Table – Mapping FSC to Specific Handlers

This is how the kernel distinguishes different types of page faults.

Reference: arch/arm64/mm/fault.c – fault_info[] array

The esr_to_fault_info() function uses the FSC (bits [5:0] of ESR) as a direct index into a table of handler functions:

static inline const struct fault_info *esr_to_fault_info(unsigned long esr)
{
    return fault_info + (esr & ESR_ELx_FSC);   // FSC is the array index
}

Key entries in the table:

FSC	Handler Function	Fault Type
0x00–0x03	do_bad	Address size fault (levels 0–3)
0x04–0x07	do_translation_fault	Translation fault (levels 0–3) – page not mapped
0x08–0x0B	do_page_fault	Access flag fault (levels 0–3)
0x0C–0x0F	do_page_fault	Permission fault (levels 0–3) – e.g., write to read-only
0x10	do_sea	Synchronous external abort
0x11	do_tag_check_fault	MTE (Memory Tagging Extension) fault
0x21	do_alignment_fault	Alignment fault

Reference: arch/arm64/mm/fault.c – do_mem_abort()

void do_mem_abort(unsigned long far, unsigned long esr, struct pt_regs *regs)
{
    const struct fault_info *inf = esr_to_fault_info(esr);  // Look up handler
    unsigned long addr = untagged_addr(far);

    if (!inf->fn(far, esr, regs))    // Call the handler; 0 = success
        return;

    if (!user_mode(regs))
        die_kernel_fault(inf->name, addr, esr, regs);   // Kernel oops

    arm64_notify_die(inf->name, regs, inf->sig, inf->code, addr, esr);
}

4.5 Kernel Page Faults and Spurious Faults

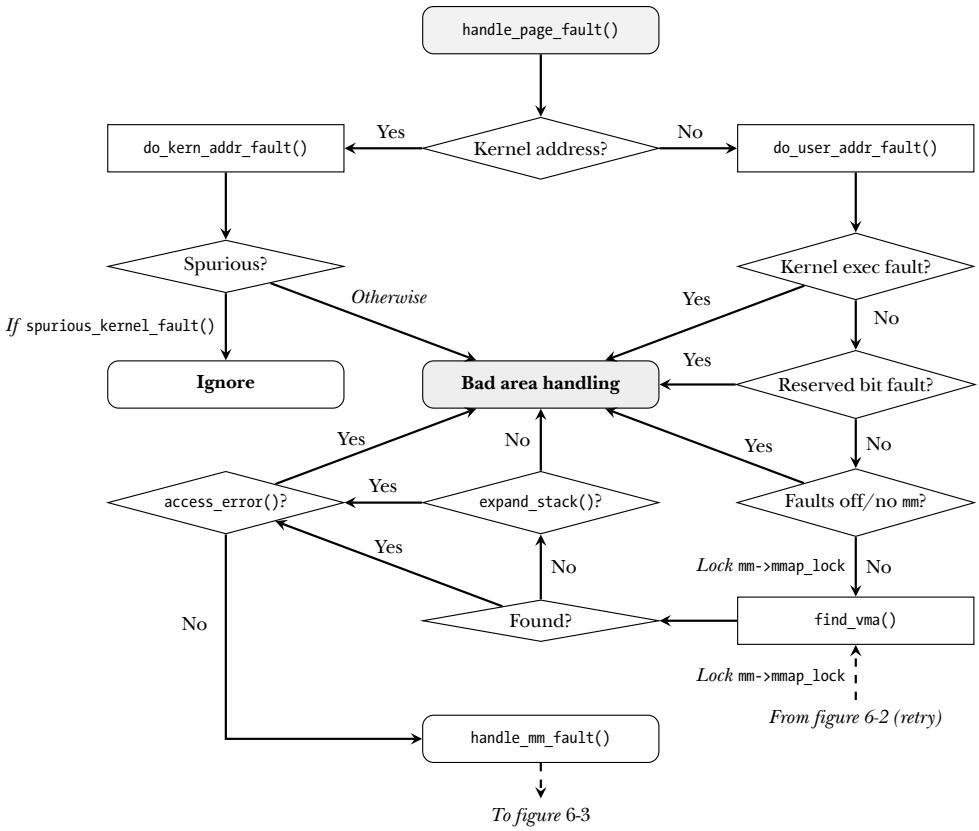

The following diagram shows the overall hardware page fault dispatch flow (x86-64 naming, but the logic is architecturally analogous on AArch64 — handle_page_fault() corresponds to do_mem_abort(), do_kern_addr_fault() to the kernel abort path, do_user_addr_fault() to the user abort path):

Figure: Overview of hardware page fault dispatch — kernel vs user address, spurious fault check, VMA lookup, and handle_mm_fault() entry

Kernel page faults require entirely separate handling from userland page faults. The usual functionality available to userspace — such as demand paging — is not available to the kernel, and therefore most of the time a page fault at a kernel address indicates an error state. However, there are occasions where this is not the case.

Spurious Faults from Lazy TLB Invalidation:

The Translation Lookaside Buffer (TLB) is a key hardware cache between virtual and physical addresses used to avoid having to walk the page table for every memory access. Due to lazy TLB invalidation, a kernel TLB entry is permitted to go stale, meaning that an invalid access to a write-protected or execution-protected region of memory may occur due to the TLB entry not reflecting a recent permission upgrade (e.g. RO -> RW or NX -> X).

When the kernel tries to write to memory that appears read-only or execute in apparently NX memory, the fault handler must check whether the page table entry actually permits the access despite the fault. If it does, the fault is spurious — the TLB simply needs to be refreshed — and the handler returns without taking further action.

This lazy approach avoids the very expensive operation of performing a full cross-processor TLB flush every time kernel page permissions are increased. There are no security implications to leaving a stale TLB when increasing permissions on a page (the stale entry is more restrictive than the current mapping).

The spurious fault check works by walking the page tables from PGD down to PTE at each level, checking:

1. Is the page table entry present at this level?
2. If it’s a huge page entry (block mapping), does it permit the access?
3. At the PTE level, does the entry permit the write or execution?

If the page table allows the access, the fault was spurious (stale TLB) and is silently handled. If not, the fault proceeds to bad_area handling (kernel oops).

On AArch64, the equivalent check in do_mem_abort() handles kernel faults via the fault_info[] dispatch. If the handler cannot resolve the fault (returns non-zero), die_kernel_fault() is called for kernel-mode faults:

if (!user_mode(regs))
    die_kernel_fault(inf->name, addr, esr, regs);   // Kernel oops

Legitimate kernel page faults include:

• Faults during get_user() / put_user() / copy_from_user() / copy_to_user() — these are handled via the exception table (__ex_table), which maps faulting instruction addresses to fixup code
• vmalloc faults — when kernel vmalloc mappings have not yet been synchronized to the current task’s page tables

---

5. How the Kernel Knows This Is a User-Space Page Fault

The kernel determines this at two levels:

Level 1: The Exception Vector Entry (Hardware-Provided)

The CPU itself tells the kernel which exception level the fault came from via the vector offset:

• Offset 0x400 (EL0 sync) -> el0t_64_sync_handler() -> calls el0_da() for data aborts
• Offset 0x200 (EL1 sync) -> el1h_64_sync_handler() -> calls el1_abort() for data aborts

This is the first discrimination.

Level 2: The ESR EC Field

The EC field in ESR_EL1 explicitly encodes the origin:

• ESR_ELx_EC_DABT_LOW (0x24) = abort from lower EL (i.e., EL0 = user)
• ESR_ELx_EC_DABT_CUR (0x25) = abort from current EL (i.e., EL1 = kernel)

Level 3: user_mode(regs) in do_page_fault()

Reference: arch/arm64/mm/fault.c

if (user_mode(regs))
    mm_flags |= FAULT_FLAG_USER;

The user_mode() macro checks bit 4 of regs->pstate (the saved SPSR_EL1), which encodes the exception level the fault came from. If the M[3:0] field is 0b0000 (EL0), it is a user fault.

Level 4: Address Range Check (TTBR0 vs TTBR1)

Reference: arch/arm64/mm/fault.c – do_translation_fault()

if (is_ttbr0_addr(addr))
    return do_page_fault(far, esr, regs);   // User address range

On AArch64, TTBR0 addresses (lower half of virtual address space) are user addresses, TTBR1 addresses (upper half) are kernel addresses. The is_ttbr0_addr() function checks whether the faulting address falls in the user range.

---

6. How the Kernel Switches from User Mode to Kernel Mode

This Is NOT a Software Operation – The CPU Does It

When a page fault occurs while executing in EL0 (user mode), the CPU automatically performs the mode switch. There is no syscall or svc instruction involved – the MMU fault itself triggers it.

The Exact Hardware Sequence

User code at EL0 executes:  LDR X0, [X1]   (X1 points to unmapped page)
                                    |
                        +-----------+-----------+
                        |   MMU DETECTS FAULT    |  <-- Hardware
                        +-----------+-----------+
                                    |
                The CPU atomically does ALL of these:
                                    |
    +---------------------------------------------------------------+
    | 1. ELR_EL1  <- PC of faulting instruction                     |
    | 2. SPSR_EL1 <- Current PSTATE (includes EL0 indicator)        |
    | 3. ESR_EL1  <- Exception syndrome (EC=0x24, FSC, WnR)        |
    | 4. FAR_EL1  <- Faulting virtual address (value of X1)         |
    | 5. PSTATE   <- Switch to EL1, mask interrupts (DAIF)          |
    | 6. SP       <- Switch to SP_EL1 (kernel stack)                |
    | 7. PC       <- VBAR_EL1 + 0x400 (EL0 64-bit Sync entry)      |
    +---------------------------------------------------------------+
                                    |
                        Now executing at EL1 (kernel mode)
                        with kernel stack, at the vector entry

After this, the kernel assembly code takes over:

1. kernel_ventry saves a few registers, branches to el0t_64_sync
2. kernel_entry 0 macro saves all 31 GPRs + ELR + SPSR onto the kernel stack as struct pt_regs
3. bl el0t_64_sync_handler calls into C code

The kernel stack (SP_EL1) was set up when the process was created. Each process has its own kernel stack. The SP_EL1 value is loaded from the process’s thread_info during context switch.

---

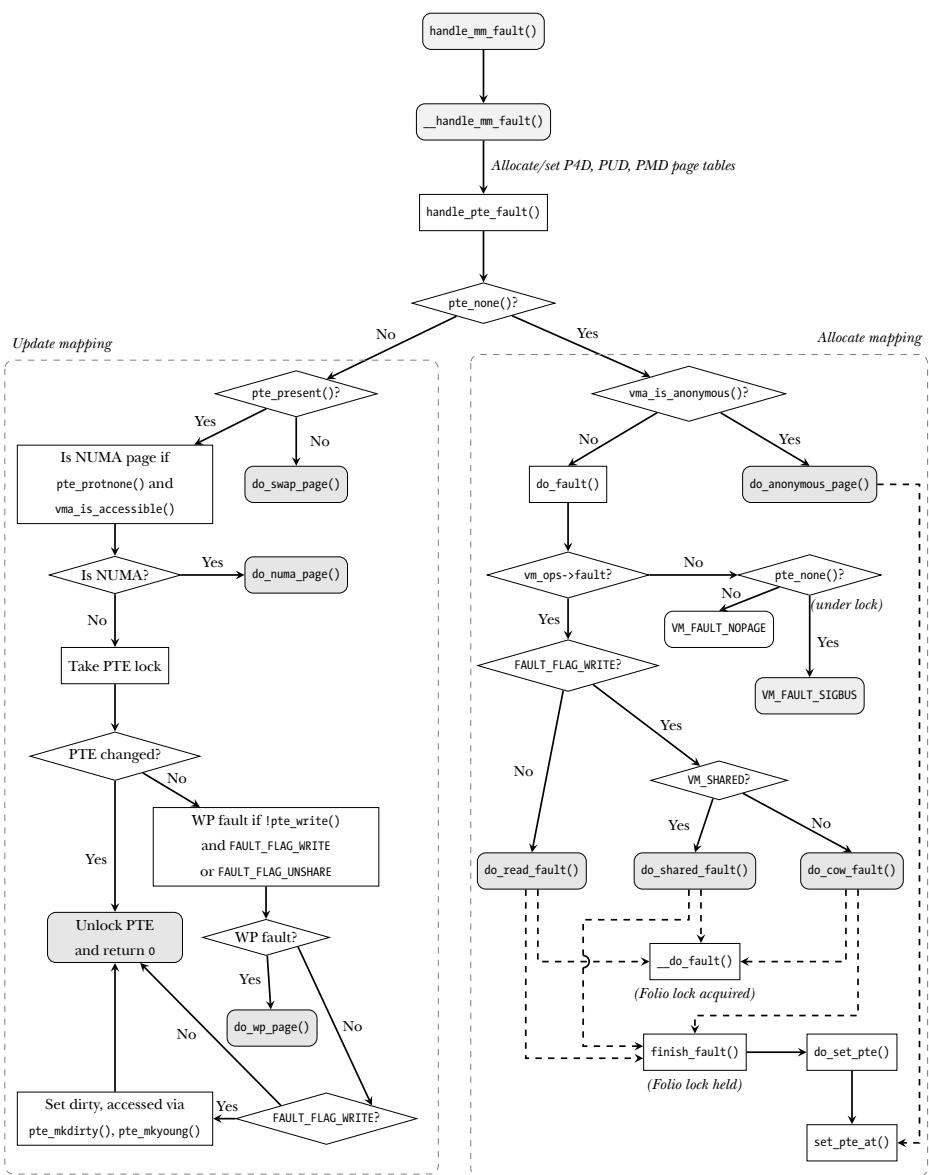

7. How the Kernel Resolves Different Types of Page Faults

7.1 The Central Flow

After do_mem_abort() dispatches to the right handler, page faults that can be resolved go through this chain:

do_mem_abort()
    |
    +-- do_translation_fault()     [FSC 0x04-0x07: page not mapped]
    |       +-- do_page_fault()
    |
    +-- do_page_fault()            [FSC 0x08-0x0F: access/permission faults]
            |
            +-- Find the VMA (vm_area_struct) for the faulting address
            +-- Check permissions against VMA flags
            +-- handle_mm_fault()  [Generic MM -- arch-independent from here]
                    |
                    +-- __handle_mm_fault()
                            |
                            +-- Walk/allocate PGD -> P4D -> PUD -> PMD
                            +-- handle_pte_fault()
                                    |
                                    +-- PTE missing     -> do_pte_missing()
                                    +-- PTE swapped out -> do_swap_page()
                                    +-- NUMA hint fault -> do_numa_page()
                                    +-- Write to RO     -> do_wp_page() [COW]

7.2 Fault Flags

Before examining the fault handler, it’s important to understand the flags that control fault handling behavior. These are set in the mm_flags variable and passed through to handle_mm_fault().

Key fault flags:

Flag	Meaning
FAULT_FLAG_WRITE	The fault was caused by a write access
FAULT_FLAG_USER	The fault originated from user mode
FAULT_FLAG_ALLOW_RETRY	The fault handler is allowed to retry if it drops locks
FAULT_FLAG_KILLABLE	The faulting task can be killed while waiting for I/O
FAULT_FLAG_INTERRUPTIBLE	The faulting task can be interrupted while waiting
FAULT_FLAG_UNSHARE	The faulting anonymous page should be ‘unshared’ if it is a CoW page marked exclusive. Used by GUP in faultin_page(). Invalid if FAULT_FLAG_WRITE is also set (which would copy the page anyway). This avoids situations where a forked folio might get CoW’d, causing the userland mapping to point at a different folio
FAULT_FLAG_ORIG_PTE_VALID	Indicates whether the orig_pte field in struct vm_fault contains a valid entry. Set or cleared in handle_pte_fault() depending on whether vmf->pmd is empty (as determined by pmd_none())

The default set of flags (FAULT_FLAG_DEFAULT) consists of FAULT_FLAG_ALLOW_RETRY, FAULT_FLAG_KILLABLE and FAULT_FLAG_INTERRUPTIBLE. These are set during hardware page fault handling.

The generic page handling function handle_mm_fault() is invoked both by the architecture-specific logic described above, and by other parts of the kernel — notably GUP via faultin_page() and fixup_user_fault().

7.3 do_page_fault() – The Core AArch64 Handler

Reference: arch/arm64/mm/fault.c – do_page_fault()

static int __kprobes do_page_fault(unsigned long far, unsigned long esr,
                                   struct pt_regs *regs)
{
    /* 1. Determine fault type from ESR */
    if (is_el0_instruction_abort(esr)) {
        vm_flags = VM_EXEC;            // Instruction fetch fault
    } else if (is_write_abort(esr)) {
        vm_flags = VM_WRITE;           // Write fault
        mm_flags |= FAULT_FLAG_WRITE;
    } else {
        vm_flags = VM_READ;            // Read fault
    }

    if (user_mode(regs))
        mm_flags |= FAULT_FLAG_USER;

    /* 2. Find the VMA containing the faulting address */
    /* Fast path: per-VMA lock */
    vma = lock_vma_under_rcu(mm, addr);
    if (vma) {
        /* Check VMA permissions */
        if (!(vma->vm_flags & vm_flags)) {
            vma_end_read(vma);
            goto bad_area;              // SIGSEGV
        }
        fault = handle_mm_fault(vma, addr, mm_flags, regs);
        /* ... */
    }

    /* Slow path: mmap_read_lock */
    vma = lock_mm_and_find_vma(mm, addr, regs);
    fault = handle_mm_fault(vma, addr, mm_flags, regs);

    /* 3. Handle errors */
    if (fault & VM_FAULT_OOM)       -> out_of_memory()
    if (fault & VM_FAULT_SIGBUS)    -> SIGBUS to process
    if (fault & VM_FAULT_SIGSEGV)   -> SIGSEGV to process
}

Key helpers used:

• is_el0_instruction_abort() – checks if fault is an instruction fetch from EL0
• is_write_abort() – checks WnR bit in ESR
• lock_vma_under_rcu() – fast-path VMA lookup
• lock_mm_and_find_vma() – slow-path VMA lookup

7.4 Demand Paging – Anonymous Pages (Heap, Stack, mmap MAP_ANONYMOUS)

When a process does malloc() -> mmap(MAP_ANONYMOUS), the kernel only creates a VMA. No physical page is allocated, no PTE is created. The first access triggers a translation fault.

Reference: mm/memory.c – do_pte_missing()

static vm_fault_t do_pte_missing(struct vm_fault *vmf)
{
    if (vma_is_anonymous(vmf->vma))
        return do_anonymous_page(vmf);     // Heap/stack/anonymous mmap
    else
        return do_fault(vmf);              // File-backed mapping
}

Where vma_is_anonymous() is defined in include/linux/mm.h.

Reference: mm/memory.c – do_anonymous_page()

do_anonymous_page():
    |
    +-- READ fault:
    |   Allocate PTE table if needed: pte_alloc()
    |   Map the ZERO PAGE (shared, read-only, no physical allocation!):
    |       entry = pte_mkspecial(pfn_pte(zero_pfn, vm_page_prot))
    |       set_pte_at(mm, addr, pte, entry)
    |   > Process reads zeros. No real page allocated yet.
    |
    +-- WRITE fault:
        Allocate a real physical page (folio):
            folio = alloc_anon_folio(vmf)
        Zero the page:
            __folio_mark_uptodate(folio)
        Allocate PTE table if needed:
            pte_alloc(mm, pmd)
        Install the PTE:
            entry = mk_pte(page, vma->vm_page_prot)
            entry = pte_mkwrite(pte_mkdirty(entry))    // writable + dirty
            set_pte_at(mm, addr, pte, entry)
        Add to reverse mapping:
            folio_add_new_anon_rmap(folio, vma, addr)
        > Process now has a real physical page mapped R/W.

Key functions: alloc_anon_folio(), set_pte_at()

7.5 File-Backed Page Faults

Reference: mm/memory.c – do_fault()

static vm_fault_t do_fault(struct vm_fault *vmf)
{
    if (!(vmf->flags & FAULT_FLAG_WRITE))
        return do_read_fault(vmf);          // Read from file -> page cache lookup
    else if (!(vma->vm_flags & VM_SHARED))
        return do_cow_fault(vmf);           // Write to private mapping -> COW copy
    else
        return do_shared_fault(vmf);        // Write to shared mapping
}

These call vma->vm_ops->fault() (typically filemap_fault()) which:

1. Looks up the page in the page cache
2. If not found, calls filesystem’s readahead() to read from disk
3. Once the page is in the page cache, installs the PTE pointing to it

Sub-handlers:

• do_read_fault()
• do_cow_fault()
• do_shared_fault()

7.6 Swap Page Faults

Reference: mm/memory.c – do_swap_page()

When a page was swapped out, the PTE is not “empty” – it contains a swap entry (a non-present PTE encoding the swap device and offset).

do_swap_page():
    |
    +-- Decode swap entry from PTE
    +-- Look up folio in swap cache: swap_cache_get_folio()
    +-- If not cached: read from swap device: swapin_readahead()
    +-- Lock folio, verify swap entry still matches
    +-- Build new PTE: mk_pte(page, vma->vm_page_prot)
    +-- Install PTE: set_ptes(mm, addr, ptep, pte, nr_pages)
    +-- Free swap slot if possible: folio_free_swap()

7.7 Copy-on-Write (COW) Page Faults

When a process forks, both parent and child share the same physical pages, mapped read-only. When either writes, a permission fault occurs.

Reference: mm/memory.c – do_wp_page()

do_wp_page():
    |
    +-- Is this page shared by multiple processes?
    |   YES -> Allocate a new page, copy contents, install new PTE (COW)
    |   NO  -> Just make the existing PTE writable (reuse optimization)
    |
    +-- set_pte_at(mm, addr, pte, entry)  // Install new/updated PTE

7.8 Page Table Allocation and struct vm_fault Setup

Reference: mm/memory.c – __handle_mm_fault()

static vm_fault_t __handle_mm_fault(struct vm_area_struct *vma,
        unsigned long address, unsigned int flags)
{
    struct vm_fault vmf = {
        .vma = vma,
        .address = address & PAGE_MASK,       // Page-aligned fault address
        .real_address = address,               // Original unaligned address
        .flags = flags,
        .pgoff = linear_page_index(vma, address), // Page offset within VMA
        .gfp_mask = __get_fault_gfp_mask(vma),    // Allocation flags
    };
    struct mm_struct *mm = vma->vm_mm;
    pgd_t *pgd;
    p4d_t *p4d;

    pgd = pgd_offset(mm, address);            // Level 0: always exists
    p4d = p4d_alloc(mm, pgd, address);        // Level 1: allocate if missing
    vmf.pud = pud_alloc(mm, p4d, address);    // Level 2: allocate if missing
    vmf.pmd = pmd_alloc(mm, vmf.pud, address);// Level 3: allocate if missing
    /* ... */
    return handle_pte_fault(&vmf);            // Level 4: PTE handling
}

Each *_alloc() call checks if the page table page exists at that level. If not, it allocates a new page (4KB), zeroes it, and installs it in the parent level’s descriptor. This is how the page table tree grows on demand.

Page table walk references: pgd_offset, p4d_alloc, pud_alloc, pmd_alloc

7.9 The PTE-Level Decision Tree (handle_pte_fault)

The following diagram shows the complete generic (architecture-independent) page fault logic from handle_mm_fault() through handle_pte_fault(), including both the “update mapping” path (PTE exists) and the “allocate mapping” path (PTE is empty):

Figure: Generic page fault logic — handle_mm_fault() through handle_pte_fault() decision tree

After __handle_mm_fault() walks/allocates page tables down to the PMD level, handle_pte_fault() makes the critical decisions about what to do at the PTE level:

Step 1: Check if PMD is newly allocated (empty)

If the PMD was just allocated, the PTE page table doesn’t exist yet. In this case, vmf->pte is set to NULL and FAULT_FLAG_ORIG_PTE_VALID is cleared — no PTE has been allocated.

Step 2: If PMD exists, look up the PTE

If the PMD already existed, the handler uses pte_offset_map() to find the PTE entry, takes a copy in orig_pte, and sets FAULT_FLAG_ORIG_PTE_VALID.

If the PTE entry is empty (as determined by pte_none() — a PTE entry might be empty but not fully zeroed as a mask is applied), the pte field is set to NULL.

Step 3: Dispatch based on PTE state

handle_pte_fault():
    |
    +-- PTE is NULL (no mapping exists):
    |   |
    |   +-- vma_is_anonymous(vma)?
    |   |   YES -> do_anonymous_page()    // Heap/stack/anon mmap
    |   |   NO  -> do_fault()             // File-backed mapping
    |
    +-- PTE is non-empty but not present (bit 0 clear):
    |   |
    |   +-- Is it a swap entry?
    |       YES -> do_swap_page()          // Page was swapped out
    |
    +-- PTE is present but NUMA-migrated:
    |   +-- do_numa_page()                 // NUMA balancing migration
    |
    +-- PTE is present, write to read-only:
        +-- do_wp_page()                   // Copy-on-Write handling

The function vma_is_anonymous() is a key definition:

static inline bool vma_is_anonymous(struct vm_area_struct *vma)
{
    return !vma->vm_ops;
}

If a VMA lacks customized struct vm_operations_struct (vm_ops), then it is anonymous. Only non-anonymous (typically file-backed) memory mappings require customized VMA operation handling. This is the fundamental distinction that routes the fault to either do_anonymous_page() (allocate physical memory) or do_fault() (look up page cache / invoke filesystem).

---

8. How the Kernel Returns to the CPU After Handling the Fault

Once the page fault is resolved (PTE installed, page table populated), the kernel must return to the faulting instruction so the CPU can re-execute it – this time the MMU walk will succeed.

Return Path from User-Space Fault

Reference: arch/arm64/kernel/entry.S

After the C handler returns, execution reaches ret_to_user:

SYM_CODE_START_LOCAL(ret_to_user)
    ldr    x19, [tsk, #TSK_TI_FLAGS]    // Check for pending work (signals, etc.)
    enable_step_tsk x19, x2              // Re-enable single-step if needed
    kernel_exit 0                        // <-- Exit to EL0
SYM_CODE_END(ret_to_user)

The kernel_exit 0 macro does:

kernel_exit 0:
    // 1. Restore ELR_EL1 and SPSR_EL1 from saved pt_regs
    ldp  x21, x22, [sp, #S_PC]          // x21 = saved ELR, x22 = saved SPSR
    // (ELR_EL1 holds the address of the faulting instruction)

    // 2. Restore user stack pointer
    ldr  x23, [sp, #S_SP]
    msr  sp_el0, x23

    // 3. Program return state
    msr  elr_el1, x21                   // Set return PC = faulting instruction
    msr  spsr_el1, x22                  // Set return PSTATE = original user PSTATE

    // 4. Restore all 31 general-purpose registers from pt_regs
    ldp  x0, x1, [sp, #16 * 0]
    ldp  x2, x3, [sp, #16 * 1]
    ...
    ldp  x28, x29, [sp, #16 * 14]
    // (restore x30/lr separately)

    // 5. Execute ERET -- the magic instruction
    eret                                 // <-- Return to EL0
    sb                                   // Speculation barrier

What ERET Does (Hardware)

The ERET (Exception Return) instruction is the inverse of the exception entry. The CPU hardware atomically:

1. Loads PC from ELR_EL1 – this is the address of the faulting instruction
2. Loads PSTATE from SPSR_EL1 – this restores the original exception level (EL0), interrupt masks, condition flags
3. Switches back to EL0 – user mode
4. Switches SP to SP_EL0 – user stack

The faulting instruction now re-executes. The MMU performs the page table walk again. This time, because the kernel installed a valid PTE, the walk succeeds, the TLB caches the new translation, and execution continues normally. The user-space code never knows a fault occurred.

Return Path from Kernel Fault

For kernel faults, the path goes through ret_to_kernel instead:

SYM_CODE_START_LOCAL(ret_to_kernel)
    kernel_exit 1                       // Exit back to EL1
SYM_CODE_END(ret_to_kernel)

kernel_exit 1 restores all registers and executes eret which returns to the faulting kernel instruction (still at EL1).

KPTI (Kernel Page Table Isolation) Impact

When CONFIG_UNMAP_KERNEL_AT_EL0 is enabled (Meltdown mitigation), the return path goes through tramp_exit:

SYM_CODE_START_LOCAL(tramp_exit)
    tramp_unmap_kernel  x29             // Switch TTBR1 to trampoline page tables
    mrs     x29, far_el1               // Restore x29
    eret                               // Return to EL0 with kernel unmapped
    sb
SYM_CODE_END(tramp_exit)

This switches TTBR1_EL1 to a minimal trampoline page table before returning to user space, so the kernel’s address space is not mapped while user code runs.

---

9. Complete End-to-End Flow Diagram

Here is the entire page fault path for a typical demand paging scenario – user code writes to a freshly malloc()‘d page for the first time:

=====================================================================
HARDWARE (CPU + MMU)
=====================================================================

 1  User code at EL0:    STR X0, [X1]   (X1 = address from malloc, no physical page yet)
                             |
 2  MMU walks page tables via TTBR0_EL1
    Level 0 (PGD) -> Level 1 (PUD) -> Level 2 (PMD) -> Level 3 (PTE)
    Finds: PTE entry is EMPTY (all zeros) -> PTE_VALID (bit 0) is 0
                             |
 3  MMU raises: Translation Fault, Level 3 (FSC = 0x07)
                             |
 4  CPU saves state atomically:
    ELR_EL1  = PC of STR instruction
    SPSR_EL1 = PSTATE (EL0, interrupts enabled, etc.)
    ESR_EL1  = EC=0x24 (DABT_LOW) | WnR=1 (write) | FSC=0x07 (xlat L3)
    FAR_EL1  = value of X1 (faulting virtual address)
                             |
 5  CPU switches to EL1, jumps to VBAR_EL1 + 0x400

=====================================================================
KERNEL ASSEMBLY (arch/arm64/kernel/entry.S)
=====================================================================

 6  kernel_ventry 0,t,64,sync:
    Sub SP by PT_REGS_SIZE, check stack overflow, branch to el0t_64_sync

 7  el0t_64_sync:
    kernel_entry 0 -> save all 31 GPRs + ELR + SPSR into struct pt_regs
    mov x0, sp    -> x0 = pointer to pt_regs
    bl el0t_64_sync_handler

=====================================================================
KERNEL C -- ENTRY (arch/arm64/kernel/entry-common.c)
=====================================================================

 8  el0t_64_sync_handler(regs):                              [line 749]
    esr = read_sysreg(esr_el1)          -> 0x9600_0007 (example)
    ESR_ELx_EC(esr) = 0x24              -> ESR_ELx_EC_DABT_LOW
    switch -> el0_da(regs, esr)

 9  el0_da():                                                [line 546]
    far = read_sysreg(far_el1)          -> faulting virtual address
    do_mem_abort(far, esr, regs)

=====================================================================
KERNEL C -- FAULT DISPATCH (arch/arm64/mm/fault.c)
=====================================================================

10  do_mem_abort():                                          [line 980]
    inf = fault_info[esr & 0x3F]        -> fault_info[0x07]
    inf->fn = do_translation_fault      -> call it

11  do_translation_fault():                                  [line 838]
    is_ttbr0_addr(addr)?                -> YES (user address)
    do_page_fault(far, esr, regs)

12  do_page_fault():                                         [line 601]
    is_write_abort(esr)?                -> YES (WnR=1)
    vm_flags = VM_WRITE
    mm_flags |= FAULT_FLAG_WRITE | FAULT_FLAG_USER
    vma = find VMA containing addr      -> found (from malloc/mmap)
    vma->vm_flags & VM_WRITE?           -> YES (VMA allows writes)
    handle_mm_fault(vma, addr, mm_flags, regs)

=====================================================================
KERNEL C -- GENERIC MM (mm/memory.c)
=====================================================================

13  handle_mm_fault() -> __handle_mm_fault():                [line 6417]
    pgd = pgd_offset(mm, addr)          -> exists
    p4d = p4d_alloc(mm, pgd, addr)      -> exists or allocated
    pud = pud_alloc(mm, p4d, addr)      -> exists or allocated
    pmd = pmd_alloc(mm, pud, addr)      -> exists or allocated
    handle_pte_fault()

14  handle_pte_fault():                                      [line 6335]
    vmf->pte == NULL                    -> PTE missing
    do_pte_missing()

15  do_pte_missing():                                        [line 4561]
    vma_is_anonymous(vma)?              -> YES (malloc = anonymous)
    do_anonymous_page()

16  do_anonymous_page():                                     [line 5287]
    pte_alloc(mm, pmd)                  -> allocate PTE page table if needed
    folio = alloc_anon_folio(vmf)       -> allocate a physical 4KB page
    clear_huge_page(page, addr, 1)      -> zero the page
    entry = mk_pte(page, vma->vm_page_prot)  -> build PTE descriptor
    entry = pte_mkwrite(pte_mkdirty(entry))  -> make it writable + dirty
    set_pte_at(mm, addr, pte, entry)    -> WRITE PTE INTO PAGE TABLE *
    return VM_FAULT_NOPAGE              -> success, no signal needed

=====================================================================
RETURN PATH
=====================================================================

17  Returns unwind: do_anonymous_page -> handle_pte_fault -> __handle_mm_fault
    -> handle_mm_fault -> do_page_fault -> do_translation_fault
    -> do_mem_abort (returns 0 = success)
    -> el0_da -> arm64_exit_to_user_mode
    -> el0t_64_sync_handler returns

18  Back in entry.S: b ret_to_user -> kernel_exit 0         [line 608]
    Restore ELR_EL1 = faulting STR instruction address
    Restore SPSR_EL1 = original EL0 PSTATE
    Restore all GPRs
    ERET -> back to EL0

=====================================================================
HARDWARE (CPU + MMU) -- RETRY
=====================================================================

19  CPU re-executes: STR X0, [X1]
    MMU walks page tables -> finds valid PTE with AF set, writable
    Translation succeeds -> write to physical page
    User code continues, never aware a fault occurred

---

10. Summary Table

Question	Answer
Who triggers the page fault?	The MMU hardware inside the CPU core
Software or hardware?	Hardware detects the fault. Software (kernel) resolves it
Which hardware unit?	The MMU (Memory Management Unit), integrated into the CPU core
How does CPU know it’s a page fault?	MMU checks PTE_VALID, PTE_AF, and permission bits during page table walk
How does CPU know which handler?	CPU jumps to VBAR_EL1 + offset. The kernel’s vector table is at that address
Is the handler software?	Yes – the exception vector table and all handlers are kernel code
How does the kernel distinguish fault types?	Reads ESR_EL1 register – EC field for exception class, FSC field for fault subtype. Uses fault_info[] table to dispatch
How does the kernel resolve demand paging?	Allocates physical page via alloc_anon_folio(), installs PTE via set_pte_at()
How does the kernel return to the CPU?	Restores all registers, executes ERET instruction which atomically returns to the faulting instruction at EL0
How does user->kernel switch happen?	CPU hardware does it atomically: saves PC/PSTATE/ESR/FAR, switches to EL1, jumps to vector
How does the kernel know it’s a user fault?	Vector offset (0x400 vs 0x200), ESR EC field (DABT_LOW vs DABT_CUR), and user_mode(regs) check

---

Source File References

File	What It Contains	Link
arch/arm64/kernel/entry.S	Exception vector table, kernel_entry/kernel_exit macros, ret_to_user	entry.S
arch/arm64/kernel/entry-common.c	C handlers: el0t_64_sync_handler, el0_da, el1_abort	entry-common.c
arch/arm64/kernel/head.S	Boot-time VBAR_EL1 programming	head.S
arch/arm64/include/asm/esr.h	ESR register bit definitions (EC, FSC, WnR)	esr.h
arch/arm64/include/asm/pgtable-hwdef.h	Hardware PTE bit definitions	pgtable-hwdef.h
arch/arm64/include/asm/pgtable-prot.h	Software PTE bit definitions	pgtable-prot.h
arch/arm64/mm/fault.c	do_mem_abort, fault_info[] table, do_page_fault, do_translation_fault	fault.c
mm/memory.c	handle_mm_fault, __handle_mm_fault, do_anonymous_page, do_swap_page, do_wp_page	memory.c
include/linux/mm.h	vma_is_anonymous and other MM helpers	mm.h
