Interrupt Handling in the Linux Kernel — Part 6a
Interrupt Handling in the Linux Kernel — Part 6a: Workqueues — Architecture, Data Structures, and Core API
Part 4 covers top halves, bottom halves, softirqs, ksoftirqd,
local_bh_disable/local_bh_enable, and spinlock variants in interrupt context:part3_doc_part4.mdPart 5 covers tasklets in depth —
tasklet_struct, scheduling, serialization, HI_SOFTIRQ vs TASKLET_SOFTIRQ, enable/disable, and deprecation:part5_doc.mdPart 6b covers delayed work, RCU work, custom workqueues, flags, concurrency control, and advanced patterns:
part6_doc_part2.md
Softirqs and tasklets give the kernel a way to defer work from a hardirq handler into a non-sleeping, softirq-context bottom half — but they cannot sleep. A network driver that needs to allocate memory with GFP_KERNEL, a USB driver that needs to call usb_submit_urb() with blocking, a filesystem driver that needs to take a mutex — none of these can use a softirq or a tasklet. Workqueues solve this fundamental limitation. A workqueue executes deferred work items in process context via dedicated kernel threads called kworker threads. Because work handlers run in process context, they can sleep, take mutexes, perform blocking I/O, and call any function that would be illegal in softirq context. The modern workqueue subsystem — called Concurrency Managed Workqueues (cmwq) — replaces the original per-workqueue-thread model with a shared pool of kernel threads, managed by the kernel’s own concurrency logic. This document covers the architecture, data structures, core APIs, queueing internals, execution flow, and work lifecycle management of the workqueue subsystem, with source references from the v7.2-rc5 kernel.
Table of Contents
- Why Workqueues Exist: The Problem Softirqs and Tasklets Cannot Solve
- Process Context vs Interrupt Context

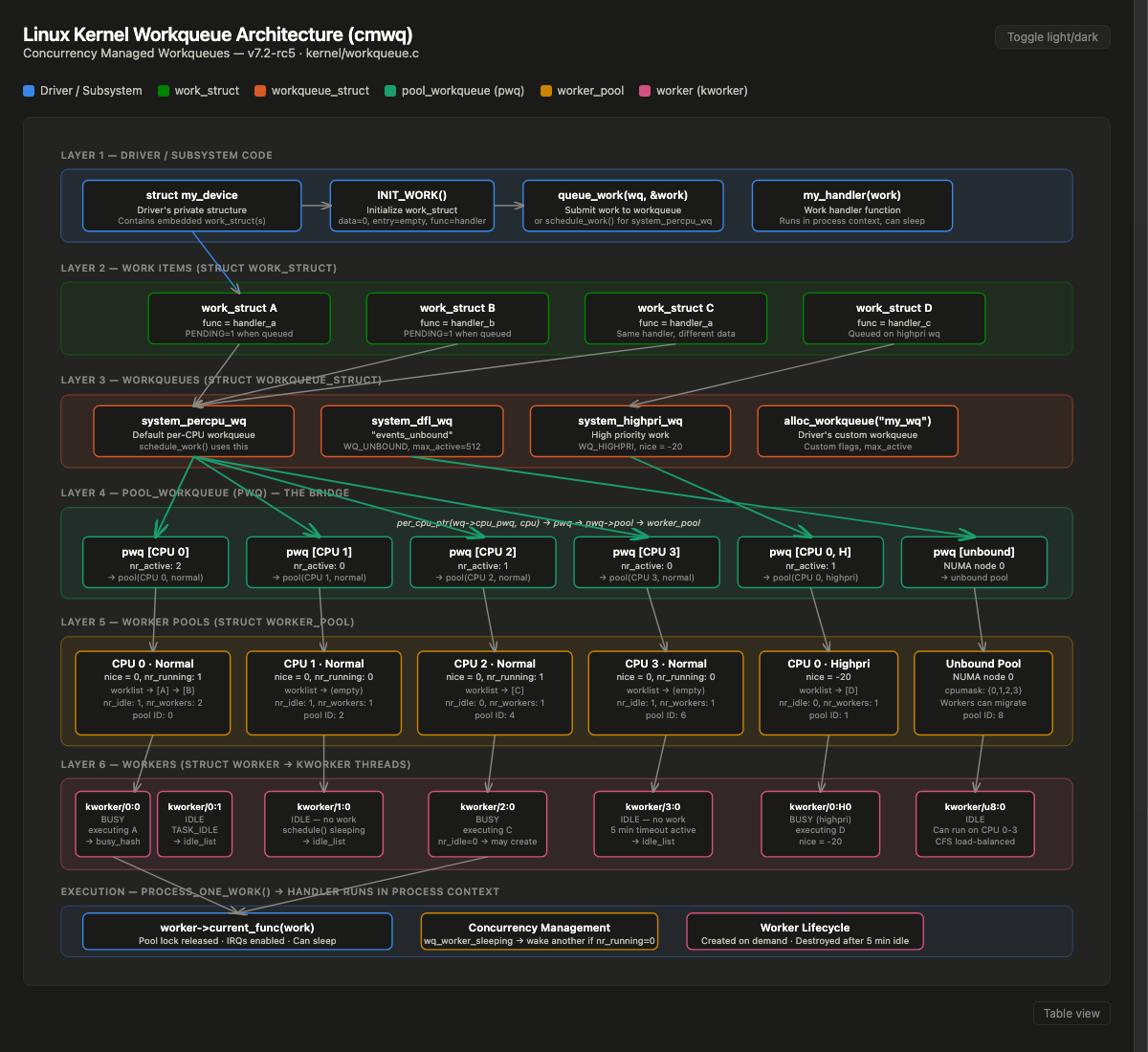

- The Workqueue Architecture: Work Items, Workqueues, Worker Pools, and Workers
- The work_struct Structure
- The data Field: Encoding Pending State, Pool ID, and PWQ Pointer
- Initializing Work Items: Static and Dynamic
- The workqueue_struct Structure
- The worker_pool Structure
- The pool_workqueue (pwq) Structure: The Bridge Between Workqueue and Pool
- The worker Structure
- Unbound Workqueues and Why Worker Pools Are Required
- Creating a Worker: create_worker()
- kworker Thread Naming: CPU-Bound vs CPU-Unbound
- System Workqueues: The Built-In Workqueues
- Queueing Work: queue_work() and queue_work_on()
- The Internal Queueing Path: __queue_work()
- How the Target Worker Pool Is Determined
- How Priority Is Determined: Normal vs High Priority Worker Pool
- What Happens If You Queue the Same Work Twice?
- What Happens When You Create Work vs When You Queue Work
- insert_work(): Linking the Work Item to the Pool
- schedule_work() and schedule_work_on()
- How to Pass Private Data to a Work Function
- container_of in the Linux Kernel
- The Worker Thread Function: worker_thread()
- Processing a Single Work Item: process_one_work()
- Execution Context: Process Context, Not Interrupt Context
- The Value of current for a Worker Thread
- A Simple Example Using the System Workqueue
- Enabling and Disabling Work Items
- cancel_work_sync(): Cancel and Wait
- flush_work(): Wait for Completion
- Complete Work Item Lifecycle
- End-to-End Under the Hood: From INIT_WORK to Handler Execution
→ Continued in Part 6b (part6_doc_part2.md): Delayed work, RCU work, custom workqueue creation, workqueue flags, concurrency control, and advanced patterns.
Why Workqueues Exist: The Problem Softirqs and Tasklets Cannot Solve
The Fundamental Constraint: Softirq Context Cannot Sleep
Softirqs and tasklets run in softirq context — they execute with preempt_count having SOFTIRQ_OFFSET set, hardware interrupts enabled, but with a critical constraint: they cannot sleep. This is not a convention — it is a hard architectural constraint enforced by the kernel at multiple levels.
Why sleeping in softirq context is structurally impossible:
When handle_softirqs() runs on the return path from a hardware interrupt, it borrows the interrupted task’s kernel stack and current pointer. The interrupted task might be in any state — it might be holding spinlocks, it might be in the middle of a critical section, it might be a user process executing a system call. If the softirq handler calls schedule(), the scheduler would context-switch away from the interrupted task using a stack frame that belongs to the softirq path, leaving the interrupted task in a corrupted state — its stack contains softirq frames that are no longer valid, and any locks it held are now abandoned.
Even when softirqs run via ksoftirqd (which has its own stack), preempt_count still has SOFTIRQ_OFFSET set. The scheduler explicitly checks this.
What happens if you try to sleep in softirq context:
The kernel enforces the no-sleep rule through two complementary mechanisms:
Mechanism 1: might_sleep() / __might_resched() — compile-time annotations. Functions that may sleep (like mutex_lock(), kmalloc(GFP_KERNEL), wait_for_completion()) call might_sleep() at their entry point. At kernel/sched/core.c, lines 9151–9199, __might_resched() checks preempt_count():
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
void __might_resched(const char *file, int line, unsigned int offsets)
{
if ((resched_offsets_ok(offsets) && !irqs_disabled() &&
!is_idle_task(current) && !current->non_block_count) ||
system_state == SYSTEM_BOOTING || system_state > SYSTEM_RUNNING ||
oops_in_progress)
return;
pr_err("BUG: sleeping function called from invalid context at %s:%d\n",
file, line);
pr_err("in_atomic(): %d, irqs_disabled(): %d, non_block: %d, pid: %d, name: %s\n",
in_atomic(), irqs_disabled(), current->non_block_count,
current->pid, current->comm);
pr_err("preempt_count: %x, expected: %x\n", preempt_count(),
offsets & MIGHT_RESCHED_PREEMPT_MASK);
dump_stack();
}
When called from softirq context, preempt_count() includes SOFTIRQ_OFFSET, so resched_offsets_ok() returns false (the nested count doesn’t match the expected zero), triggering the BUG message. This fires at the attempt to sleep, before any actual damage.
Mechanism 2: schedule_debug() / __schedule_bug() — runtime enforcement. If a softirq handler somehow reaches schedule() despite the might_sleep() check (e.g., through a code path that lacks the annotation), the scheduler itself catches it. At kernel/sched/core.c, lines 6089–6091:
1
2
3
4
if (unlikely(in_atomic_preempt_off())) {
__schedule_bug(prev);
preempt_count_set(PREEMPT_DISABLED);
}
__schedule_bug() at kernel/sched/core.c, lines 6042–6065 prints:
1
BUG: scheduling while atomic: <process>/<pid>/0x<preempt_count>
This is the last line of defense — the scheduler detects that preempt_count is non-zero and refuses to switch context. With CONFIG_PANIC_ON_WARN, this crashes the kernel.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
┌─────────────────────────────────────────────────────────────────────────────────┐
│ What Happens If You Try to Sleep in Softirq Context │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ Softirq handler calls mutex_lock() │
│ │ │
│ └── mutex_lock() calls might_sleep() │
│ │ │
│ └── __might_resched() checks preempt_count() │
│ │ │
│ preempt_count has SOFTIRQ_OFFSET set │
│ resched_offsets_ok() returns false │
│ │ │
│ ▼ │
│ "BUG: sleeping function called from invalid context" │
│ dump_stack() → full backtrace showing the offending call chain │
│ │
│ If CONFIG_DEBUG_ATOMIC_SLEEP is not set and the mutex is uncontended: │
│ mutex_lock() may succeed without actually sleeping │
│ (the fast path uses atomic cmpxchg, no schedule() call) │
│ BUT: this is a latent bug — the next time the mutex IS contended, │
│ schedule() is called, and __schedule_bug() fires: │
│ │
│ "BUG: scheduling while atomic: <process>/<pid>/0x<preempt_count>" │
│ → kernel stack dump, potential panic │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
What Specifically Cannot Be Done in Softirq Context
The no-sleep constraint cascades through the entire kernel API surface. Any function that internally calls schedule() — directly or transitively — is off-limits:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
┌────────────────────────────────┬────────────────────────────────────────────────┐
│ Operation │ Why It Cannot Be Done in Softirq Context │
├────────────────────────────────┼────────────────────────────────────────────────┤
│ mutex_lock() │ Calls might_sleep(). If mutex is contended, │
│ │ calls schedule() to wait for the owner. │
│ │ mutex.c line 316: might_sleep() │
├────────────────────────────────┼────────────────────────────────────────────────┤
│ kmalloc(GFP_KERNEL) │ GFP_KERNEL includes __GFP_DIRECT_RECLAIM. │
│ │ When memory is low, the allocator enters │
│ │ direct reclaim — shrinks caches, writes back │
│ │ dirty pages, which requires sleeping. │
│ │ Must use GFP_ATOMIC (no direct reclaim). │
├────────────────────────────────┼────────────────────────────────────────────────┤
│ copy_from_user() / │ May trigger a page fault. If the page is │
│ copy_to_user() │ not resident, the fault handler calls │
│ │ schedule() to wait for I/O. │
├────────────────────────────────┼────────────────────────────────────────────────┤
│ msleep() / ssleep() │ Directly calls schedule_timeout(). │
├────────────────────────────────┼────────────────────────────────────────────────┤
│ wait_for_completion() │ Calls schedule() in a loop until the │
│ │ completion is signaled. │
├────────────────────────────────┼────────────────────────────────────────────────┤
│ usb_control_msg() │ Submits a URB and sleeps until the USB host │
│ │ controller completes the transfer. │
├────────────────────────────────┼────────────────────────────────────────────────┤
│ vfs_read() / vfs_write() │ File I/O may require disk access, which │
│ │ involves sleeping for DMA completion. │
├────────────────────────────────┼────────────────────────────────────────────────┤
│ request_firmware() │ Waits for userspace to provide a firmware │
│ │ blob — may sleep for seconds or longer. │
└────────────────────────────────┴────────────────────────────────────────────────┘
The constraint is transitive: if function A calls function B, and B calls schedule(), then A cannot be called from softirq context. This makes the no-sleep rule pervasive — a large fraction of the kernel’s API is off-limits.
The GFP_KERNEL vs GFP_ATOMIC Distinction
The memory allocation constraint deserves special attention because it directly affects reliability. At include/linux/gfp_types.h, lines 376–377:
1
2
#define GFP_ATOMIC (__GFP_HIGH|__GFP_KSWAPD_RECLAIM)
#define GFP_KERNEL (__GFP_RECLAIM | __GFP_IO | __GFP_FS)
GFP_KERNEL includes __GFP_DIRECT_RECLAIM (inside __GFP_RECLAIM), which allows the allocator to enter direct reclaim — synchronously shrinking caches, writing dirty pages, and compacting memory. This is the allocator’s most powerful mode and has the highest success rate, but it sleeps.
GFP_ATOMIC omits __GFP_DIRECT_RECLAIM. The allocator can only use free pages from the per-CPU page lists and the buddy allocator’s free lists. If free memory is exhausted, __GFP_HIGH allows dipping into emergency reserves, but the allocation can still fail. In softirq context, GFP_ATOMIC is the only safe option — and it means every allocation can fail, and the softirq handler must handle that failure gracefully.
Workqueue handlers use GFP_KERNEL, so allocations virtually never fail under normal conditions. This dramatically simplifies driver code.
Real-World Examples: Why Drivers Need Workqueues
The workqueue API is the most heavily used deferred-execution mechanism in the kernel. In the v7.2-rc5 source tree, the drivers/ directory alone contains over 2,000 INIT_WORK calls, 1,400+ schedule_work calls, and 1,800+ queue_work calls. Nearly every major subsystem depends on workqueues.
Example: USB hub event handling. The USB hub driver at drivers/usb/core/hub.c, line 5874 uses a work item to handle hub events:
1
2
3
4
5
6
7
8
9
10
static void hub_event(struct work_struct *work)
{
struct usb_hub *hub = container_of(work, struct usb_hub, events);
/* ... */
usb_lock_device(hdev); /* takes a mutex — sleeps if contended */
/* ... */
msleep(hub_power_on_good_delay(hub)); /* sleeps for milliseconds */
mutex_lock(&hub->status_mutex); /* another mutex */
/* ... */
}
This handler must sleep — it takes mutexes, calls msleep(), performs USB control transfers that block until the host controller completes them. It could never run as a softirq or tasklet.
Example: Block layer I/O completion. When a disk I/O operation completes, the block layer often needs to do post-processing that involves memory allocation with GFP_KERNEL, filesystem callbacks, or waking userspace processes waiting on I/O — all operations that may sleep.
Example: Network device link state changes. When a network link goes up or down, the driver needs to reconfigure hardware, potentially load firmware (request_firmware()), update routing tables (which requires mutex-protected data structures), and notify userspace — tasks that span multiple sleeping operations.
Why Threaded IRQs Are Not Enough
Threaded IRQs (request_threaded_irq()) provide process context for interrupt handling, but they have fundamental limitations:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Threaded IRQ Limitations vs Workqueue Capabilities │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ THREADED IRQs: │
│ ● Tied to a specific IRQ line — one handler per IRQ │
│ ● Cannot be queued from arbitrary contexts (timer callbacks, other │
│ work handlers, tasklets, kernel threads) │
│ ● Cannot be deferred with a timer delay │
│ ● Cannot have multiple independent work items on the same "channel" │
│ ● Cannot be shared across modules or subsystems │
│ ● Thread is created at request_irq() time and persists for the IRQ's │
│ lifetime — one thread per IRQ, cannot be pooled │
│ │
│ WORKQUEUES: │
│ ● Not tied to any IRQ — can be queued from anywhere │
│ ● Can be queued from hardirq, softirq, timer, process context │
│ ● Built-in delayed execution (delayed_work + timer) │
│ ● Multiple work items can share a single workqueue │
│ ● Shared worker pools — no per-workqueue thread explosion │
│ ● Concurrency management — automatic thread scaling │
│ ● Can be canceled, flushed, disabled, re-queued │
│ │
│ USE THREADED IRQ WHEN: │
│ ● Your bottom half is directly tied to a specific hardware interrupt │
│ ● You need the kernel's IRQ framework (masking, affinity, /proc/interrupts) │
│ │
│ USE WORKQUEUE WHEN: │
│ ● Work is not tied to a specific IRQ │
│ ● Work can be queued from multiple contexts │
│ ● You need delayed execution, cancellation, or flushing │
│ ● You need multiple independent deferred tasks │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The Old Workqueue Model and Why cmwq Replaced It
The modern workqueue subsystem — Concurrency Managed Workqueues (cmwq) — was introduced in Linux 2.6.36 (2010) by Tejun Heo to replace the original workqueue implementation. Understanding what was wrong with the old model explains why the current architecture looks the way it does.
The old model: Each create_workqueue() call created a dedicated kernel thread per CPU for multi-threaded workqueues (MT wq), or a single system-wide thread for single-threaded workqueues (ST wq). The workqueue owned its threads exclusively.
The problem: thread explosion. As the kernel grew more workqueue users over the years (networking, block layer, USB, filesystems, power management, device-mapper, crypto, etc.), the number of kernel threads exploded. A multi-threaded workqueue on a 64-core system created 64 threads. With dozens of workqueues, the system could saturate the default 32,768 PID space just during boot — before any userspace process even started.
The second problem: concurrency starvation. Despite the thread explosion, the old model provided poor concurrency. An MT workqueue had exactly one thread per CPU. If that thread’s work item slept (e.g., waiting for I/O), no other work item from the same workqueue could run on that CPU until it woke up — even if there were dozens of pending work items. This led to deadlocks when work items depended on each other.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Old Workqueue Model vs cmwq │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ OLD MODEL (pre-2.6.36): │
│ ─────────────────────── │
│ │
│ create_workqueue("foo") → 1 kthread/CPU → 64 threads on 64-core │
│ create_workqueue("bar") → 1 kthread/CPU → 64 threads │
│ create_workqueue("baz") → 1 kthread/CPU → 64 threads │
│ ... │
│ Total: N workqueues × M CPUs = N×M threads │
│ │
│ Problem: 50 workqueues × 64 CPUs = 3,200 kernel threads │
│ Most are idle most of the time — massive waste │
│ │
│ Per-workqueue thread sleeps → ALL work items on that CPU stall │
│ No cross-workqueue thread sharing │
│ │
│ cmwq (2.6.36+): │
│ ─────────────── │
│ │
│ alloc_workqueue("foo") ─┐ │
│ alloc_workqueue("bar") ─┤→ shared per-CPU worker pools (2 per CPU) │
│ alloc_workqueue("baz") ─┘ + dynamic unbound pools as needed │
│ │
│ Total: 2 pools/CPU + unbound pools = ~2×M + small number │
│ Workers created on demand, reaped after 5 min idle │
│ │
│ Worker sleeps → pool automatically wakes another worker │
│ Concurrency managed by tracking nr_running per pool │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The cmwq design achieves three goals simultaneously: fewer threads (shared pools instead of per-workqueue threads), better concurrency (automatic worker creation when existing workers sleep), and simpler API (drivers don’t manage thread lifecycle).
BH Workqueues: Bridging the Gap
Linux 6.9+ introduced BH workqueues (WQ_BH flag) as a modern replacement for tasklets. A BH workqueue executes work items in softirq context (not process context), using the workqueue API but without the ability to sleep. This provides the familiar workqueue API (INIT_WORK, queue_work, cancel_work_sync) for code that needs softirq-level latency without needing to sleep.
The system BH workqueue system_bh_wq is created during early boot alongside the regular system workqueues. This is the recommended replacement path for code migrating away from deprecated tasklets.
The Complete Deferred-Execution Landscape
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
┌─────────────────────────────────────────────────────────────────────────────────┐
│ DEFERRED EXECUTION IN THE LINUX KERNEL │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ MECHANISM CONTEXT CAN SLEEP? STATUS USE CASE │
│ ───────── ─────── ────────── ────── ──────── │
│ │
│ Softirq Softirq NO Active Core kernel: │
│ (SOFTIRQ_OFFSET) (10 static) networking, │
│ block, timers, │
│ RCU │
│ │
│ Tasklet Softirq NO DEPRECATED Legacy driver │
│ (SOFTIRQ_OFFSET) → use BH wq bottom halves │
│ or threaded IRQ │
│ │
│ BH Workqueue Softirq NO Active Modern tasklet │
│ (WQ_BH) (SOFTIRQ_OFFSET) (since 6.9) replacement, │
│ workqueue API │
│ │
│ Threaded IRQ Process YES Active IRQ-specific │
│ (preempt_count=0) bottom halves │
│ │
│ Workqueue Process YES Active General-purpose │
│ (preempt_count=0) (RECOMMENDED) deferred work, │
│ driver I/O, │
│ 2000+ users │
│ in drivers/ │
│ │
│ ◄── Lower latency Higher latency ──► │
│ ◄── More restrictions Fewer restrictions ──► │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Process Context vs Interrupt Context
To understand why workqueues matter, recall the execution context hierarchy:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Hardirq Context (preempt_count has HARDIRQ_OFFSET set)
│ ● Cannot sleep, cannot take mutexes
│ ● Interrupts may be disabled on local CPU
│ ● current points to the interrupted task (borrowed)
│
│ CAN preempt ───────────────────────────────────────┐
▼ │
Softirq Context (preempt_count has SOFTIRQ_OFFSET set) │
│ ● Cannot sleep, cannot take mutexes │
│ ● Hardware interrupts ENABLED │
│ ● Tasklets and softirqs run here │
│ │
│ CAN preempt ───────────────────────────────────────┘
▼
Process Context (preempt_count = 0, can sleep)
● CAN sleep, take mutexes, do blocking I/O
● Has a proper task_struct with its own kernel stack
● Workqueue work handlers run HERE
● Threaded IRQ handlers run HERE
● Regular kernel threads run HERE
Workqueue work handlers run in process context — they are executed by kworker kernel threads that have their own task_struct, their own kernel stack, and are fully schedulable by the kernel’s scheduler. This is what makes sleeping legal.
The Workqueue Architecture: Work Items, Workqueues, Worker Pools, and Workers
The modern workqueue subsystem (cmwq — Concurrency Managed Workqueues) has four key abstractions. Understanding their relationships is critical.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
┌─────────────────────────────────────────────────────────────────────────────────┐
│ WORKQUEUE ARCHITECTURE (cmwq) │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ WORK ITEM (struct work_struct) │
│ ────────────────────────────── │
│ The unit of deferred work. Contains a function pointer (the handler) │
│ and metadata. A driver creates work items and queues them. │
│ │
│ WORKQUEUE (struct workqueue_struct) │
│ ───────────────────────────────── │
│ A named channel for submitting work items. Does NOT have its own threads. │
│ Routes work items to the appropriate worker pool. Multiple workqueues │
│ share the same underlying worker pools. │
│ │
│ WORKER POOL (struct worker_pool) │
│ ──────────────────────────────── │
│ A pool of kernel threads (workers) that execute work items. There are │
│ two per-CPU pools (normal priority + high priority) and dynamically │
│ created pools for unbound workqueues. The pool manages concurrency. │
│ │
│ WORKER (struct worker) │
│ ────────────────────── │
│ A kernel thread (kworker) that picks work items from the pool's worklist │
│ and executes them. Workers are created and destroyed dynamically by the │
│ pool based on demand. │
│ │
│ │
│ RELATIONSHIPS: │
│ │
│ Driver code │
│ │ │
│ │ queue_work(wq, &work) │
│ ▼ │
│ workqueue_struct ──── "events" / "my_wq" / ... │
│ │ │
│ │ routed via pool_workqueue (pwq) │
│ ▼ │
│ worker_pool ──── per-CPU or unbound │
│ │ │
│ │ worklist (linked list of pending work_structs) │
│ ▼ │
│ worker (kworker thread) ──── picks work, calls work->func(work) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
┌─────────────────────────────────────────────────────────────────────────────────────────────────┐
│ How Work Items, Workqueues, Worker Pools, and Workers Relate │
├─────────────────────────────────────────────────────────────────────────────────────────────────┤
│ │
│ DRIVER / SUBSYSTEM CODE │
│ ────────────────────── │
│ struct my_device { │
│ struct work_struct work_a; ─────────┐ │
│ struct work_struct work_b; ────────┐│ │
│ }; ││ WORK ITEMS │
│ ││ (struct work_struct) │
│ INIT_WORK(&dev->work_a, handler_a); ││ Each contains: │
│ INIT_WORK(&dev->work_b, handler_b); ││ .func = handler function │
│ ││ .data = flags + pwq pointer (when queued) │
│ ││ .entry = list linkage into pool->worklist │
│ ││ │
│ queue_work(system_wq, &dev->work_a); ────┘│ │
│ queue_work(my_wq, &dev->work_b); ─────┘ │
│ │ │ │
│ ▼ ▼ │
│ ┌──────────┐ ┌──────────┐ │
│ │system_wq │ │ my_wq │ WORKQUEUES (struct workqueue_struct) │
│ │ "events" │ │ "my_drv" │ Named channels. Do NOT own threads. │
│ └─────┬────┘ └────┬─────┘ Route work to pools via pwq bridge. │
│ │ │ │
│ │ ┌──────────┘ │
│ │ │ │
│ ▼ ▼ POOL_WORKQUEUE (struct pool_workqueue, "pwq") │
│ ┌──────────────┐ One per (workqueue, pool) pair. │
│ │ pwq │ Enforces max_active limit. │
│ │ .pool ──────┼──┐ Tracks nr_active, holds inactive_works list. │
│ │ .wq │ │ │
│ │ .nr_active │ │ │
│ └──────────────┘ │ │
│ │ │
│ ▼ │
│ ┌──────────────────────────────────────────────────────────────────────────────┐ │
│ │ WORKER POOL (struct worker_pool) CPU 0, normal priority (nice=0) │ │
│ │ │ │
│ │ .worklist ──→ [work_a] ──→ [work_b] ──→ [work_x] ──→ ... │ │
│ │ │ │ │
│ │ │ dequeue + process_one_work() │ │
│ │ ▼ │ │
│ │ .workers: │ │
│ │ ┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐ │ │
│ │ │ WORKER 0 │ │ WORKER 1 │ │ WORKER 2 │ │ │
│ │ │ kworker/0:0 │ │ kworker/0:1 │ │ kworker/0:2 │ │ │
│ │ │ │ │ │ │ │ │ │
│ │ │ BUSY │ │ IDLE │ │ BUSY │ │ │
│ │ │ current_work= │ │ sleeping on │ │ current_work= │ │ │
│ │ │ work_a │ │ pool->idle_list │ │ work_x │ │ │
│ │ │ calls │ │ │ │ calls │ │ │
│ │ │ handler_a() │ │ woken when │ │ handler_x() │ │ │
│ │ │ │ │ nr_running == 0 │ │ │ │ │
│ │ └─────────────────┘ └─────────────────┘ └─────────────────┘ │ │
│ │ │ │
│ │ Concurrency management: │ │
│ │ nr_running tracks how many workers are on-CPU (not sleeping). │ │
│ │ When nr_running drops to 0, pool wakes an idle worker. │ │
│ │ Workers created on demand, reaped after 5 min idle. │ │
│ │ │ │
│ └──────────────────────────────────────────────────────────────────────────────┘ │
│ │
│ MULTIPLICITY: │
│ Many work items ──→ queued on ──→ few workqueues ──→ routed to ──→ shared worker pools │
│ (thousands) (tens) (via pwq) (2 per CPU + unbound) │
│ │
└─────────────────────────────────────────────────────────────────────────────────────────────────┘
Interactive Architecture Diagram: For a complete 7-layer visual with hover tooltips on every component, open workqueue_architecture.html in a browser. A static snapshot is also available:
The pool_workqueue (struct pool_workqueue, abbreviated pwq) is the bridge between a workqueue and a worker pool. Each workqueue has one pwq per CPU (for per-CPU workqueues) or one pwq per NUMA node (for unbound workqueues). The pwq tracks how many work items from a given workqueue are active in a given pool, and enforces the max_active concurrency limit.
The work_struct Structure
Every work item is represented by a struct work_struct, defined at include/linux/workqueue_types.h, lines 16–23:
1
2
3
4
5
6
7
8
struct work_struct {
atomic_long_t data;
struct list_head entry;
work_func_t func;
#ifdef CONFIG_LOCKDEP
struct lockdep_map lockdep_map;
#endif
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
┌─────────────────────────────────────────────────────────────────────────────────┐
│ struct work_struct — The Unit of Deferred Work │
├─────────────────────────────────────────────────────────────────────────────────┤
│ data │ atomic_long_t — multipurpose field: │
│ │ When queued (WORK_STRUCT_PWQ set): │
│ │ High bits = pointer to pool_workqueue (pwq) │
│ │ Low bits = flags (PENDING, INACTIVE, PWQ, LINKED, color) │
│ │ When off-queue (WORK_STRUCT_PWQ clear): │
│ │ High bits = last pool ID │
│ │ Mid bits = disable depth (16 bits) │
│ │ Low bits = flags (PENDING + off-queue flags) │
├──────────────┼──────────────────────────────────────────────────────────────────┤
│ entry │ struct list_head — links into pool->worklist or │
│ │ pwq->inactive_works while queued │
├──────────────┼──────────────────────────────────────────────────────────────────┤
│ func │ work_func_t — the callback: void (*)(struct work_struct *) │
│ │ This is the function the worker thread will call │
└─────────────────────────────────────────────────────────────────────────────────┘
The work function type is defined at include/linux/workqueue_types.h, line 13:
1
typedef void (*work_func_t)(struct work_struct *work);
The handler receives a pointer to the work_struct itself — not a void * data pointer. This means you must use container_of() to get back to your enclosing structure (covered later in this document).
The data Field: Encoding Pending State, Pool ID, and PWQ Pointer
The data field is the most complex part of work_struct. It is an atomic_long_t (64 bits on AArch64) that encodes different information depending on the work item’s state. The bit layout is defined at include/linux/workqueue.h, lines 26–74:
1
2
3
4
5
6
7
8
9
10
11
12
13
enum work_bits {
WORK_STRUCT_PENDING_BIT = 0, /* work item is pending execution */
WORK_STRUCT_INACTIVE_BIT, /* work item is inactive */
WORK_STRUCT_PWQ_BIT, /* data points to pwq */
WORK_STRUCT_LINKED_BIT, /* next work is linked to this one */
WORK_STRUCT_FLAG_BITS, /* 4 bits (or 5 with DEBUG_OBJECTS_WORK) */
WORK_STRUCT_COLOR_SHIFT = WORK_STRUCT_FLAG_BITS,
WORK_STRUCT_COLOR_BITS = 4, /* 16 flush colors */
WORK_STRUCT_PWQ_SHIFT = WORK_STRUCT_COLOR_SHIFT + WORK_STRUCT_COLOR_BITS,
/* ... */
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
┌─────────────────────────────────────────────────────────────────────────────────┐
│ work_struct->data Bit Layout (64-bit, AArch64) │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ WHEN QUEUED (WORK_STRUCT_PWQ bit set): │
│ ────────────────────────────────────── │
│ MSB LSB │
│ [ pwq pointer (aligned to 256 bytes) ] [ color 4b ] [ flags 4b ] │
│ ▲ │
│ bit 0: PENDING │
│ bit 1: INACTIVE │
│ bit 2: PWQ (= 1) │
│ bit 3: LINKED │
│ │
│ WHEN OFF-QUEUE (WORK_STRUCT_PWQ bit clear): │
│ ─────────────────────────────────────────── │
│ MSB LSB │
│ [ pool ID (31b) ] [ disable depth (16b) ] [ offq flags ] [ flags 4b ] │
│ ▲ │
│ bit 0: PENDING │
│ bit 2: PWQ (= 0) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
WORK_STRUCT_PENDING_BIT (bit 0) is the key bit. It is set when a work item has been queued and cleared when the worker starts executing it. This single bit is how queue_work_on() prevents double-queueing — it atomically tests and sets this bit, and if it was already set, the call returns false without re-queueing.
Initializing Work Items: Static and Dynamic
Work items can be initialized at compile time (static) or at runtime (dynamic).
Static Initialization
The DECLARE_WORK macro creates and initializes a work_struct at compile time, defined at include/linux/workqueue.h, lines 252–253:
1
2
#define DECLARE_WORK(n, f) \
struct work_struct n = __WORK_INITIALIZER(n, f)
Which expands using __WORK_INITIALIZER at include/linux/workqueue.h, lines 239–244:
1
2
3
4
5
#define __WORK_INITIALIZER(n, f) { \
.data = WORK_DATA_STATIC_INIT(), \
.entry = { &(n).entry, &(n).entry }, \
.func = (f), \
}
Example — static initialization:
1
2
3
static void my_work_handler(struct work_struct *work);
static DECLARE_WORK(my_work, my_work_handler);
This creates a global struct work_struct named my_work with my_work_handler as its callback. The data field is initialized with WORK_STRUCT_NO_POOL (no pool association), entry is initialized as an empty list (pointing to itself), and func is set to the handler.
Dynamic Initialization
The INIT_WORK macro initializes a work_struct at runtime, defined at include/linux/workqueue.h, lines 309–310:
1
2
#define INIT_WORK(_work, _func) \
__INIT_WORK((_work), (_func), 0)
Which expands to __INIT_WORK_KEY at include/linux/workqueue.h, lines 293–299:
1
2
3
4
5
6
7
#define __INIT_WORK_KEY(_work, _func, _onstack, _key) \
do { \
__init_work((_work), _onstack); \
(_work)->data = (atomic_long_t) WORK_DATA_INIT(); \
INIT_LIST_HEAD(&(_work)->entry); \
(_work)->func = (_func); \
} while (0)
Example — dynamic initialization:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
struct my_device {
struct work_struct work;
int irq_status;
};
static void my_work_handler(struct work_struct *work)
{
struct my_device *dev = container_of(work, struct my_device, work);
/* dev->irq_status is accessible here */
}
static int my_probe(struct platform_device *pdev)
{
struct my_device *dev = devm_kzalloc(&pdev->dev, sizeof(*dev), GFP_KERNEL);
INIT_WORK(&dev->work, my_work_handler);
return 0;
}
Dynamic initialization is the common case in drivers, because the work_struct is typically embedded inside a device-specific structure that is allocated at probe time.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Static vs Dynamic Initialization │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ STATIC (compile-time): │
│ ────────────────────── │
│ DECLARE_WORK(my_work, handler) │
│ │ │
│ ├── Allocates struct work_struct as a global/static variable │
│ ├── .data = WORK_DATA_STATIC_INIT() (pool=NONE, PENDING=0) │
│ ├── .entry = { &self, &self } (empty list) │
│ └── .func = handler │
│ │
│ Use when: global/static work items, module-level singletons │
│ │
│ DYNAMIC (runtime): │
│ ────────────────── │
│ INIT_WORK(&dev->work, handler) │
│ │ │
│ ├── Initializes an already-allocated work_struct │
│ ├── .data = WORK_DATA_INIT() (pool=NONE, PENDING=0) │
│ ├── INIT_LIST_HEAD(&entry) (empty list) │
│ └── .func = handler │
│ │
│ Use when: work_struct embedded in dynamically allocated structures │
│ (driver probe, per-device, per-connection) │
│ │
│ Both produce the same initial state: │
│ data = no pool, not pending │ entry = empty │ func = handler │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The workqueue_struct Structure
The struct workqueue_struct is the externally visible workqueue — the named channel through which work items are submitted. It is defined at kernel/workqueue.c, lines 349–397:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
struct workqueue_struct {
struct list_head pwqs; /* WR: all pwqs of this wq */
struct list_head list; /* PR: list of all workqueues */
struct mutex mutex; /* protects this wq */
int work_color; /* WQ: current work color */
int flush_color; /* WQ: current flush color */
atomic_t nr_pwqs_to_flush; /* flush in progress */
struct wq_flusher *first_flusher; /* WQ: first flusher */
struct list_head flusher_queue; /* WQ: flush waiters */
struct list_head flusher_overflow; /* WQ: flush overflow list */
struct list_head maydays; /* MD: pwqs requesting rescue */
struct worker *rescuer; /* MD: rescue worker */
int nr_drainers; /* WQ: drain in progress */
int max_active; /* WO: max active works */
int min_active; /* WO: min active works */
int saved_max_active; /* WQ: saved max_active */
int saved_min_active; /* WQ: saved min_active */
struct workqueue_attrs *unbound_attrs; /* PW: only for unbound wqs */
struct pool_workqueue __rcu *dfl_pwq; /* PW: only for unbound wqs */
char name[WQ_NAME_LEN]; /* I: workqueue name */
unsigned int flags ____cacheline_aligned; /* WQ: WQ_* flags */
struct pool_workqueue __rcu * __percpu *cpu_pwq; /* I: per-cpu pwqs */
struct wq_node_nr_active *node_nr_active[]; /* I: per-node nr_active */
};
A workqueue does not own any threads. It routes work items to the appropriate worker pool through pool_workqueue (pwq) intermediaries. The cpu_pwq field is a per-CPU pointer to the pwq for each CPU — this is how queue_work() finds the right pool for the current CPU.
The max_active field limits how many work items from this workqueue can be executing concurrently in a given pool. The rescuer field points to a dedicated rescue worker (created if WQ_MEM_RECLAIM is set) that can execute work items when normal worker creation fails due to memory pressure.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
┌─────────────────────────────────────────────────────────────────────────────────┐
│ workqueue_struct Key Fields │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ workqueue_struct ("events") │
│ ┌───────────────────────────────────────────────────────────────────┐ │
│ │ name[] = "events" │ │
│ │ flags = WQ_PERCPU │ │
│ │ max_active = 1024 (WQ_DFL_ACTIVE) │ │
│ │ │ │
│ │ cpu_pwq ──────→ per-CPU array of pwq pointers │ │
│ │ │ [CPU 0] → pwq₀ → worker_pool (CPU 0, normal) │ │
│ │ │ [CPU 1] → pwq₁ → worker_pool (CPU 1, normal) │ │
│ │ │ [CPU N] → pwqₙ → worker_pool (CPU N, normal) │ │
│ │ │ │
│ │ pwqs = list of all pwqs belonging to this wq │ │
│ │ list = node on global workqueues list │ │
│ │ rescuer = rescue worker (if WQ_MEM_RECLAIM set) │ │
│ │ │ │
│ │ flush machinery: │ │
│ │ work_color / flush_color / flusher_queue │ │
│ │ (color-based flush protocol for flush_workqueue) │ │
│ └───────────────────────────────────────────────────────────────────┘ │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The worker_pool Structure
The struct worker_pool is where the actual execution happens. It maintains a list of pending work items (worklist), a set of idle workers, a hash table of busy workers, and the concurrency management state. Defined at kernel/workqueue.c, lines 195–244:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
struct worker_pool {
raw_spinlock_t lock; /* the pool lock */
int cpu; /* I: the associated cpu */
int node; /* I: the associated node ID */
int id; /* I: pool ID */
unsigned int flags; /* L: flags */
int nr_running; /* concurrency management counter */
struct list_head worklist; /* L: list of pending works */
int nr_workers; /* L: total number of workers */
int nr_idle; /* L: currently idle workers */
struct list_head idle_list; /* L: list of idle workers */
struct timer_list idle_timer; /* L: worker idle timeout */
struct work_struct idle_cull_work; /* L: worker idle cleanup */
struct timer_list mayday_timer; /* L: SOS timer for workers */
DECLARE_HASHTABLE(busy_hash, BUSY_WORKER_HASH_ORDER);
/* L: hash of busy workers */
struct worker *manager; /* L: purely informational */
struct list_head workers; /* A: attached workers */
struct workqueue_attrs *attrs; /* I: worker attributes */
int refcnt; /* PL: refcnt for unbound pools */
struct rcu_head rcu;
};
There are two standard worker pools per CPU — one for normal priority work and one for high priority work (WQ_HIGHPRI). This is encoded in the constant at kernel/workqueue.c, line 107:
1
NR_STD_WORKER_POOLS = 2, /* # standard pools per cpu */
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Worker Pools Per CPU │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ CPU 0 CPU 1 CPU N │
│ ┌──────────────────┐ ┌──────────────────┐ │
│ │ Pool 0 (normal) │ │ Pool 2 (normal) │ ... │
│ │ nice = 0 │ │ nice = 0 │ │
│ │ worklist ──→... │ │ worklist ──→... │ │
│ │ workers: kw0,.. │ │ workers: kw2,.. │ │
│ ├──────────────────┤ ├──────────────────┤ │
│ │ Pool 1 (highpri) │ │ Pool 3 (highpri) │ ... │
│ │ nice = MIN_NICE │ │ nice = MIN_NICE │ │
│ │ worklist ──→... │ │ worklist ──→... │ │
│ │ workers: kw1,.. │ │ workers: kw3,.. │ │
│ └──────────────────┘ └──────────────────┘ │
│ │
│ Additionally, unbound pools are created dynamically │
│ (shared across CPUs, not tied to any specific CPU) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The concurrency management is built around nr_running — a count of how many workers from this pool are currently on-CPU (not sleeping). The scheduler hooks wq_worker_running() and wq_worker_sleeping() (called from schedule()) increment and decrement this counter. When nr_running drops to zero (all workers are sleeping), the pool wakes another idle worker to process pending work items. This ensures forward progress even when work items block.
The design principle is simple: the pool wants exactly one worker running at a time. If that worker blocks (sleeps on a mutex, waits for I/O), nr_running drops to 0 and another worker is woken. When the blocked worker resumes, nr_running temporarily exceeds 1, and keep_working() (which checks nr_running <= 1) causes the excess worker to go back to sleep. This self-regulating mechanism means the pool automatically scales concurrency to match the number of blocking work items — without any explicit management from the workqueue user.
The busy_hash is a hash table keyed by work item address. When process_one_work() starts executing a work item, the worker is inserted into busy_hash. This allows find_worker_executing_work() to quickly locate whether a given work item is currently being executed by any worker in the pool — the critical lookup for the non-reentrance guarantee in __queue_work().
The pool_workqueue (pwq) Structure: The Bridge Between Workqueue and Pool
The struct pool_workqueue connects a specific workqueue to a specific worker pool. It enforces per-workqueue concurrency limits (max_active) and maintains the inactive work list. Defined at kernel/workqueue.c, lines 269–312:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
struct pool_workqueue {
struct worker_pool *pool; /* I: the associated pool */
struct workqueue_struct *wq; /* I: the owning workqueue */
int work_color; /* L: current color */
int flush_color; /* L: flushing color */
int refcnt; /* L: reference count */
int nr_in_flight[WORK_NR_COLORS];
/* L: nr of in_flight works */
bool plugged; /* L: execution suspended */
int nr_active; /* L: nr of active works */
struct list_head inactive_works; /* L: inactive works */
struct list_head pwqs_node; /* WR: node on wq->pwqs */
/* ... */
};
The pool_workqueue exists because worker pools are shared across multiple workqueues — the per-CPU normal-priority pool on CPU 0 serves system_percpu_wq, system_long_wq, and every custom per-CPU workqueue simultaneously. Each of these workqueues may have different max_active limits. The pwq holds this per-workqueue-per-pool state — the nr_active counter, the inactive_works list, and the flush/color accounting — so each workqueue maintains independent throttling on a shared pool.
The pwq lookup in the queueing path — per_cpu_ptr(wq->cpu_pwq, cpu) — is the critical step that connects the abstract workqueue to the concrete pool where work will execute. For per-CPU workqueues, each CPU’s pwq was wired to that CPU’s normal or highpri pool during alloc_and_link_pwqs(). For unbound workqueues, the pwq points to a dynamically created unbound pool matching the workqueue’s NUMA affinity scope.
When pwq->nr_active >= max_active, new work items are placed on pwq->inactive_works instead of the pool’s worklist, and marked with WORK_STRUCT_INACTIVE. They are activated (moved to pool->worklist) as in-flight work items complete via pwq_dec_nr_in_flight(). This throttling prevents any single workqueue from monopolizing a shared pool — an ordered workqueue (max_active=1) guarantees serial execution by keeping all but one item inactive.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
┌─────────────────────────────────────────────────────────────────────────────────┐
│ The pwq Bridge │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ workqueue_struct ("events") │
│ │ │
│ ├── pwq[CPU 0] ──→ worker_pool (CPU 0, normal) │
│ │ nr_active: 3 │
│ │ inactive_works: [work_D, work_E] │
│ │ │
│ ├── pwq[CPU 1] ──→ worker_pool (CPU 1, normal) │
│ │ nr_active: 1 │
│ │ inactive_works: [] │
│ │ │
│ └── pwq[CPU N] ──→ worker_pool (CPU N, normal) │
│ nr_active: 0 │
│ inactive_works: [] │
│ │
│ When max_active = 3 and CPU 0 already has 3 active items, │
│ work_D and work_E go to inactive_works instead of pool->worklist │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The worker Structure
The struct worker represents a single kworker thread. Defined at kernel/workqueue_internal.h, lines 24–63:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
struct worker {
/* on idle list while idle, on busy hash table while busy */
union {
struct list_head entry; /* L: while idle */
struct hlist_node hentry; /* L: while busy */
};
struct work_struct *current_work; /* K: work being processed */
work_func_t current_func; /* K: its function */
struct pool_workqueue *current_pwq; /* K: its pwq */
unsigned int current_color; /* K: color */
int sleeping; /* S: is worker sleeping? */
work_func_t last_func; /* K: last work's fn */
struct list_head scheduled; /* L: scheduled works */
struct task_struct *task; /* I: worker task */
struct worker_pool *pool; /* A: the associated pool */
struct list_head node; /* A: anchored at pool->workers */
unsigned int flags; /* L: flags */
int id; /* I: worker id */
char desc[WORKER_DESC_LEN];
struct workqueue_struct *rescue_wq; /* I: the workqueue to rescue */
};
A worker is either idle (on pool->idle_list) or busy (in pool->busy_hash). The union of entry/hentry reflects this — it is a list_head when idle and an hlist_node when busy (hashed by the address of the work item it is executing). The current_work, current_func, and current_pwq fields are set when the worker starts processing a work item and cleared when it finishes.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Worker State Transitions │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ IDLE STATE BUSY STATE │
│ ────────── ────────── │
│ worker.entry → pool->idle_list worker.hentry → pool->busy_hash │
│ worker.current_work = NULL worker.current_work = work │
│ worker.current_func = NULL worker.current_func = work->func │
│ worker.current_pwq = NULL worker.current_pwq = pwq │
│ worker.sleeping = 0 worker.sleeping = 0 or 1 │
│ │
│ │
│ create_worker() │
│ │ │
│ ▼ │
│ ┌──── IDLE (waiting) ◄──────────────────────────────┐ │
│ │ schedule() / TASK_IDLE │ │
│ │ │ │ │
│ │ │ woken: need_more_worker() == true │ │
│ │ ▼ │ │
│ │ BUSY (processing) │ │
│ │ ├── assign_work(work, worker) │ │
│ │ ├── process_one_work(worker, work) │ │
│ │ │ ├── hash_add(busy_hash) │ │
│ │ │ ├── clear PENDING bit │ │
│ │ │ ├── call work->func(work) │ │
│ │ │ └── hash_del(busy_hash) │ │
│ │ └── keep_working(pool)? ──YES──→ pick next │ │
│ │ └─NO──→ enter idle ───┘ │
│ │ │
│ │ DYING │
│ │ WORKER_DIE flag set → thread exits │
│ └──── (after IDLE_WORKER_TIMEOUT = 300*HZ = 5 minutes idle) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Unbound Workqueues and Why Worker Pools Are Required
A per-CPU workqueue (the default, WQ_PERCPU) binds work items to the CPU where they were queued. Each CPU has its own worker pool, and the kworker threads are bound to that CPU. This provides excellent cache locality — data accessed by the work handler is likely hot in the CPU’s cache.
An unbound workqueue (WQ_UNBOUND) does not bind work items to any specific CPU. Instead, unbound workqueues use dynamically created worker pools whose workers can migrate across CPUs within a NUMA node or the entire system, depending on the workqueue’s affinity scope. This is the default for system_dfl_wq (the “events_unbound” workqueue) — work items can be load-balanced across CPUs by the CFS scheduler, which is ideal for longer-running work where cache locality matters less than throughput. Note: the original system_unbound_wq is now __WQ_DEPRECATED; system_dfl_wq is its replacement. The tradeoff is that accessing per-CPU data from an unbound worker requires explicit CPU pinning or per-CPU primitives, since the worker may run on any CPU in its affinity scope.
Worker pools are required because they provide:
Thread reuse — Instead of creating a new kernel thread for every work item, workers are reused across work items and even across different workqueues. The old pre-cmwq model created a dedicated kthread per workqueue per CPU, which led to an explosion of threads as the number of workqueues grew.
Concurrency management — The pool tracks how many workers are actively running (
nr_running) and automatically wakes additional idle workers when all running workers block. This prevents deadlock when a work item sleeps waiting for something that another work item in the same pool could provide.Dynamic scaling — Workers are created on demand and reaped after an idle timeout (
IDLE_WORKER_TIMEOUT = 300 * HZ, i.e., 5 minutes), keeping resource usage proportional to actual load.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Per-CPU vs Unbound Worker Pools │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ PER-CPU (WQ_PERCPU): │
│ ──────────────────── │
│ ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌─────────┐ │
│ │ CPU 0 │ │ CPU 1 │ │ CPU 2 │ │ CPU 3 │ │
│ │ pool(N) │ │ pool(N) │ │ pool(N) │ │ pool(N) │ │
│ │ pool(H) │ │ pool(H) │ │ pool(H) │ │ pool(H) │ │
│ └────┬────┘ └────┬────┘ └────┬────┘ └────┬────┘ │
│ │ │ │ │ │
│ Workers bound Workers bound Workers bound │
│ to CPU 0 only to CPU 1 only to CPU 3 only │
│ │
│ ● Best cache locality ● Work stays on queueing CPU │
│ ● Concurrency managed per-CPU │
│ │
│ UNBOUND (WQ_UNBOUND): │
│ ───────────────────── │
│ ┌──────────────────────────┐ ┌──────────────────────────┐ │
│ │ NUMA Node 0 │ │ NUMA Node 1 │ │
│ │ ┌────────────────────┐ │ │ ┌────────────────────┐ │ │
│ │ │ Unbound pool │ │ │ │ Unbound pool │ │ │
│ │ │ Workers can run │ │ │ │ Workers can run │ │ │
│ │ │ on CPU 0,1,2,3 │ │ │ │ on CPU 4,5,6,7 │ │ │
│ │ └────────────────────┘ │ │ └────────────────────┘ │ │
│ └──────────────────────────┘ └──────────────────────────┘ │
│ │
│ ● Workers migrate across CPUs within scope │
│ ● Good for long-running work that doesn't need locality │
│ ● Scope controlled by wq_affn_scope │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The affinity scope for unbound workqueues is defined at include/linux/workqueue.h, lines 131–141:
1
2
3
4
5
6
7
8
9
enum wq_affn_scope {
WQ_AFFN_DFL, /* use system default */
WQ_AFFN_CPU, /* one pod per CPU */
WQ_AFFN_SMT, /* one pod per SMT */
WQ_AFFN_CACHE, /* one pod per LLC */
WQ_AFFN_CACHE_SHARD, /* synthetic sub-LLC shards */
WQ_AFFN_NUMA, /* one pod per NUMA node */
WQ_AFFN_SYSTEM, /* one pod across the whole system */
};
Creating a Worker: create_worker()
Workers are created by create_worker() at kernel/workqueue.c, lines 2836–2903. The function allocates a worker structure, creates a kernel thread via kthread_create_on_node(), and attaches the worker to the pool:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
static struct worker *create_worker(struct worker_pool *pool)
{
struct worker *worker;
int id;
id = ida_alloc(&pool->worker_ida, GFP_KERNEL);
if (id < 0)
return NULL;
worker = alloc_worker(pool->node);
if (!worker)
goto fail;
worker->id = id;
if (!(pool->flags & POOL_BH)) {
char id_buf[WORKER_ID_LEN];
format_worker_id(id_buf, sizeof(id_buf), worker, pool);
worker->task = kthread_create_on_node(worker_thread, worker,
pool->node, "%s", id_buf);
if (IS_ERR(worker->task))
goto fail;
set_user_nice(worker->task, pool->attrs->nice);
kthread_bind_mask(worker->task, pool_allowed_cpus(pool));
}
/* successful, attach the worker to the pool */
worker_attach_to_pool(worker, pool);
raw_spin_lock_irq(&pool->lock);
worker->pool->nr_workers++;
worker_enter_idle(worker);
if (worker->task)
wake_up_process(worker->task);
raw_spin_unlock_irq(&pool->lock);
return worker;
}
The kernel thread is created with worker_thread as its function. The worker’s nice value is set from the pool’s attributes — normal pools use nice = 0, high-priority pools use nice = MIN_NICE (= -20), as set at kernel/workqueue.c, line 128:
1
HIGHPRI_NICE_LEVEL = MIN_NICE,
The new worker starts in the idle state (worker_enter_idle()), and wake_up_process() wakes it so it enters the worker_thread() main loop.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
┌─────────────────────────────────────────────────────────────────────────────────┐
│ create_worker() Flow │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ create_worker(pool) │
│ │ │
│ ├── ida_alloc(&pool->worker_ida) → get unique worker ID │
│ │ failure → return NULL │
│ │ │
│ ├── alloc_worker(pool->node) → kzalloc struct worker │
│ │ failure → free ID, return NULL │
│ │ │
│ ├── worker->id = id │
│ │ │
│ ├── format_worker_id(id_buf, ...) → "kworker/0:1" or "kworker/u8:0" │
│ │ │
│ ├── kthread_create_on_node( → create the kthread │
│ │ worker_thread, ← thread function │
│ │ worker, ← passed as __worker arg │
│ │ pool->node, ← NUMA node affinity │
│ │ "%s", id_buf) ← thread name │
│ │ failure → free worker, return NULL │
│ │ │
│ ├── set_user_nice(task, pool->attrs->nice) │
│ │ Normal pool: nice = 0 │
│ │ Highpri pool: nice = MIN_NICE (-20) │
│ │ │
│ ├── kthread_bind_mask(task, pool_allowed_cpus(pool)) │
│ │ Per-CPU pool: bind to single CPU │
│ │ Unbound pool: bind to pod/node cpumask │
│ │ │
│ ├── worker_attach_to_pool(worker, pool) │
│ │ │
│ ├── raw_spin_lock_irq(&pool->lock) │
│ │ pool->nr_workers++ │
│ │ worker_enter_idle(worker) → put on pool->idle_list │
│ │ wake_up_process(worker->task) → start running worker_thread() │
│ └── raw_spin_unlock_irq(&pool->lock) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
When Are kworkers Created?
kworkers are not all created at boot. They are created on demand and destroyed after idle. The lifecycle has three phases:
Phase 1: Boot-Time Initialization
During kernel boot, the workqueue subsystem initializes in two stages:
workqueue_init_early()at kernel/workqueue.c, lines 7620–7710 — runs during early boot (early_initcall). Creates the per-CPU worker pool structures (2 per CPU: normal + highpri), allocates unbound pool attributes, and creates all system workqueues (system_wq,system_highpri_wq, etc.). At this point, the pools exist but have zero workers — all work items are executed directly in the queueing context becausewq_onlineis stillfalse.workqueue_init()at kernel/workqueue.c, lines 7721–7787 — runs later in boot (init_workqueuesinitcall). Creates the initial worker for each per-CPU pool and each unbound pool by callingcreate_worker(). Setswq_online = true, after which work items are queued normally and executed by kworker threads.
1
2
3
4
5
6
7
/* From workqueue_init() — creating initial workers for each CPU pool */
for_each_online_cpu(cpu) {
for_each_cpu_worker_pool(pool, cpu) {
pool->flags &= ~POOL_DISASSOCIATED;
BUG_ON(!create_worker(pool));
}
}
After workqueue_init() completes, a system with 8 CPUs has at minimum 16 kworkers (1 per pool × 2 pools per CPU × 8 CPUs), plus workers for any unbound pools.
Phase 2: On-Demand Creation
After boot, additional workers are created when the concurrency manager detects that a pool has no idle workers to handle pending work. This happens inside worker_thread() at the recheck label:
1
2
3
4
5
6
7
/* no more worker necessary? */
if (!need_more_worker(pool)) /* worklist empty or someone running */
goto sleep;
/* do we need to manage? */
if (unlikely(!may_start_working(pool)) && manage_workers(worker))
goto recheck;
The trigger chain is:
need_more_worker(pool)returnstrue— the pool has pending work ANDnr_running == 0(no worker is actively running on-CPU)may_start_working(pool)returnsfalse—pool->nr_idle == 0(no idle workers available to process work)manage_workers(worker)is called — this callscreate_worker(pool)to spawn a new kworker thread
The other on-demand trigger is kick_pool(), called after inserting work into the worklist. kick_pool() at kernel/workqueue.c, lines 1237–1260 wakes the first idle worker via wake_up_process(). If there are no idle workers, a mayday timer is set — when it fires, the pool’s rescuer (if WQ_MEM_RECLAIM is set) takes over to ensure forward progress even under memory pressure.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
┌─────────────────────────────────────────────────────────────────────────────────┐
│ When kworkers Are Created │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ BOOT TIME │
│ ───────── │
│ workqueue_init_early() → Create pool structures (no workers yet) │
│ workqueue_init() → Create 1 initial worker per pool │
│ │
│ Per 8-CPU system: 8 CPUs × 2 pools/CPU = 16 initial kworkers │
│ Plus 1+ worker per unbound pool │
│ │
│ RUNTIME (on-demand) │
│ ─────────────────── │
│ Trigger: work is queued AND pool has no idle workers │
│ │
│ worker_thread() loop: │
│ need_more_worker(pool)? ← worklist not empty AND nr_running == 0 │
│ YES → may_start_working(pool)? ← nr_idle > 0? │
│ NO → manage_workers() │
│ └── create_worker(pool) → new kworker thread │
│ YES → proceed to process work │
│ │
│ kick_pool() (called from insert_work): │
│ nr_idle > 0? │
│ YES → wake_up_process(first_idle_worker) │
│ NO → mayday_timer fires → rescuer takes over (WQ_MEM_RECLAIM) │
│ │
│ IDLE TIMEOUT (destruction) │
│ ────────────────────────── │
│ Trigger: worker idle for IDLE_WORKER_TIMEOUT (300*HZ = 5 minutes) │
│ │
│ idle_worker_timeout() fires: │
│ Too many idle workers? (nr_idle > 1) │
│ YES → set WORKER_DIE flag → worker exits worker_thread() loop │
│ NO → keep the last idle worker alive (minimum 1 per pool) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Phase 3: Idle Timeout and Destruction
Workers that have been idle for IDLE_WORKER_TIMEOUT (= 300 * HZ, i.e., 5 minutes) are candidates for destruction. The idle_timer in the pool fires idle_worker_timeout() at kernel/workqueue.c, lines 2907–2923, which sets the WORKER_DIE flag on excess idle workers. The pool always keeps at least one idle worker alive. When the dying worker wakes up in worker_thread(), it checks WORKER_DIE and exits:
1
2
3
4
5
6
7
8
/* am I supposed to die? */
if (unlikely(worker->flags & WORKER_DIE)) {
raw_spin_unlock_irq(&pool->lock);
set_pf_worker(false);
worker->pool = NULL;
ida_free(&pool->worker_ida, worker->id);
return 0; /* kthread exits */
}
How kworkers Are Assigned to CPUs
CPU assignment happens in create_worker() via a single call:
1
kthread_bind_mask(worker->task, pool_allowed_cpus(pool));
pool_allowed_cpus(pool) at kernel/workqueue.c, lines 1189–1195 returns the cpumask that determines which CPUs the kworker is allowed to run on:
- Per-CPU pools: Returns a mask with exactly one CPU — the CPU this pool belongs to. The kworker thread is hard-bound to that single CPU and will never migrate.
- Unbound pools: Returns
pool->attrs->cpumask, which is typically the NUMA node’s cpumask or a subset thereof. The kworker can migrate across all CPUs in that mask, scheduled by the kernel’s CFS scheduler.
kthread_bind_mask() at kernel/kthread.c, lines 602–612 sets the thread’s cpus_mask (also called cpu_affinity) — the same mechanism as sched_setaffinity() but callable from within the kernel.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
┌─────────────────────────────────────────────────────────────────────────────────┐
│ How kworkers Are Bound to CPUs │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ create_worker(pool) │
│ │ │
│ └── kthread_bind_mask(task, pool_allowed_cpus(pool)) │
│ │
│ Per-CPU pool (e.g., CPU 2, normal priority): │
│ ───────────────────────────────────────────── │
│ pool_allowed_cpus(pool) → cpumask = { CPU 2 } │
│ kthread_bind_mask(task, { CPU 2 }) │
│ → kworker/2:0 runs ONLY on CPU 2, forever │
│ → Ensures per-CPU data locality and cache affinity │
│ │
│ Unbound pool (NUMA node 0 with CPUs 0-3): │
│ ───────────────────────────────────────── │
│ pool_allowed_cpus(pool) → pool->attrs->cpumask = { CPU 0,1,2,3 } │
│ kthread_bind_mask(task, { CPU 0,1,2,3 }) │
│ → kworker/u8:0 can run on any of CPUs 0-3 │
│ → CFS scheduler decides which CPU based on load balancing │
│ │
│ What about CPU hotplug? │
│ ─────────────────────── │
│ When a CPU goes offline: │
│ - Per-CPU pool: workers are unbound (WORKER_UNBOUND flag set), │
│ pending work is drained or migrated │
│ - Pool is marked POOL_DISASSOCIATED │
│ When CPU comes back online: │
│ - Pool is reassociated, workers rebound to the CPU │
│ - Handled by workqueue_online_cpu() / workqueue_offline_cpu() │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Concurrency Management: The nr_running Dance
The pool’s concurrency management ensures that exactly the right number of workers are active — not too many (wasting CPU), not too few (stalling work). The key counter is pool->nr_running, which tracks how many workers from this pool are currently on-CPU (not sleeping).
The scheduler integrates with the workqueue subsystem through two hooks at kernel/sched/core.c:
wq_worker_sleeping() — called when a kworker (PF_WQ_WORKER) is about to sleep:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
void wq_worker_sleeping(struct task_struct *task)
{
struct worker *w = kthread_data(task);
struct worker_pool *pool = w->pool;
if (w->flags & WORKER_NOT_RUNNING)
return;
w->sleeping = 1;
raw_spin_lock_irq(&pool->lock);
if (need_more_worker(pool)) /* nr_running dropped to 0? */
wake_up_worker(pool); /* wake an idle worker */
raw_spin_unlock_irq(&pool->lock);
}
wq_worker_running() — called when a kworker wakes up and resumes execution:
1
2
3
4
5
6
7
8
9
void wq_worker_running(struct task_struct *task)
{
struct worker *w = kthread_data(task);
if (w->sleeping) {
w->sleeping = 0;
WRITE_ONCE(w->pool->nr_running, w->pool->nr_running + 1);
}
}
This creates a self-regulating feedback loop:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Concurrency Management — The nr_running Dance │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ Pool starts: 1 worker running, nr_running = 1 │
│ │
│ Scenario 1: Worker blocks (e.g., mutex_lock()) │
│ ────────────────────────────────────────────── │
│ schedule() → wq_worker_sleeping() │
│ nr_running-- → nr_running = 0 │
│ need_more_worker() == true (worklist not empty, nr_running == 0) │
│ → wake_up_worker() → wake an idle worker │
│ → new worker starts processing, nr_running = 1 again │
│ │
│ Scenario 2: Blocked worker wakes up │
│ ────────────────────────────────── │
│ wq_worker_running() │
│ nr_running++ → nr_running = 2 │
│ → keep_working() returns false (nr_running > 1) │
│ → one worker goes back to sleep, nr_running = 1 │
│ │
│ Scenario 3: CPU-intensive work (WQ_CPU_INTENSIVE) │
│ ───────────────────────────────────────────────── │
│ process_one_work() sets WORKER_CPU_INTENSIVE │
│ → WORKER_NOT_RUNNING flag → excluded from nr_running │
│ → kick_pool() wakes another worker for remaining work │
│ → CPU-intensive handler runs without blocking the pool │
│ │
│ Result: The pool naturally converges to 1 running worker. │
│ If that worker blocks, another takes over instantly. │
│ No coordination needed — the scheduler does it via PF_WQ_WORKER hooks. │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
kworker Thread Naming: CPU-Bound vs CPU-Unbound
You can observe kworker threads on a running system with:
1
ps -ef | grep kworker
The naming convention is defined by format_worker_id() and follows the pattern specified at kernel/workqueue.c, line 131:
1
WORKER_ID_LEN = 10 + WQ_NAME_LEN, /* "kworker/R-" + WQ_NAME_LEN */
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
┌─────────────────────────────────────────────────────────────────────────────────┐
│ kworker Thread Naming Convention │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ CPU-BOUND (per-CPU) workers: │
│ ──────────────────────────── │
│ kworker/<cpu>:<id> Normal priority pool │
│ kworker/<cpu>:H<id> High priority pool (WQ_HIGHPRI) │
│ │
│ Examples: │
│ kworker/0:0 → CPU 0, normal pool, worker ID 0 │
│ kworker/0:1 → CPU 0, normal pool, worker ID 1 │
│ kworker/3:H0 → CPU 3, high priority pool, worker ID 0 │
│ │
│ CPU-UNBOUND workers: │
│ ──────────────────── │
│ kworker/u<pool_id>:<id> │
│ │
│ Examples: │
│ kworker/u8:0 → unbound pool ID 8, worker ID 0 │
│ kworker/u12:3 → unbound pool ID 12, worker ID 3 │
│ │
│ RESCUER workers (for WQ_MEM_RECLAIM workqueues): │
│ kworker/R-<wq_name> │
│ │
│ Example: │
│ kworker/R-events → rescuer for the "events" workqueue │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
To check for high priority worker threads on a running kernel:
1
ps -ef | grep 'kworker.*:H'
System Workqueues: The Built-In Workqueues
The kernel provides several system-wide workqueues that are always present. These are created during early boot by workqueue_init_early() at kernel/workqueue.c, lines 8055–8071 and declared at include/linux/workqueue.h, lines 465–476:
1
2
3
4
5
6
7
8
9
system_wq = alloc_workqueue("events", WQ_PERCPU | __WQ_DEPRECATED, 0);
system_percpu_wq = alloc_workqueue("events", WQ_PERCPU, 0);
system_highpri_wq = alloc_workqueue("events_highpri", WQ_HIGHPRI | WQ_PERCPU, 0);
system_long_wq = alloc_workqueue("events_long", WQ_PERCPU, 0);
system_unbound_wq = alloc_workqueue("events_unbound", WQ_UNBOUND | __WQ_DEPRECATED, WQ_MAX_ACTIVE);
system_dfl_wq = alloc_workqueue("events_unbound", WQ_UNBOUND, WQ_MAX_ACTIVE);
system_freezable_wq = alloc_workqueue("events_freezable", WQ_FREEZABLE | WQ_PERCPU, 0);
system_bh_wq = alloc_workqueue("events_bh", WQ_BH | WQ_PERCPU, 0);
system_bh_highpri_wq = alloc_workqueue("events_bh_highpri", WQ_BH | WQ_HIGHPRI | WQ_PERCPU, 0);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
┌───────────────────────────────────────┬─────────────────────────────────────────┐
│ System Workqueue │ Purpose and Characteristics │
├───────────────────────────────────────┼─────────────────────────────────────────┤
│ system_percpu_wq ("events") │ Default per-CPU workqueue for │
│ │ schedule_work(). Short-lived work │
│ │ items only. Users expect fast flush. │
├───────────────────────────────────────┼─────────────────────────────────────────┤
│ system_highpri_wq ("events_highpri") │ Per-CPU, high priority (nice=-20). │
│ │ For latency-sensitive work. │
├───────────────────────────────────────┼─────────────────────────────────────────┤
│ system_long_wq ("events_long") │ Per-CPU. For long-running work items │
│ │ that would block the regular wq. │
├───────────────────────────────────────┼─────────────────────────────────────────┤
│ system_dfl_wq ("events_unbound") │ Unbound. Workers not bound to any │
│ │ CPU. Not concurrency managed. │
├───────────────────────────────────────┼─────────────────────────────────────────┤
│ system_freezable_wq │ Per-CPU, freezable during suspend. │
│ ("events_freezable") │ Work items frozen during suspend/ │
│ │ hibernate. │
├───────────────────────────────────────┼─────────────────────────────────────────┤
│ system_bh_wq ("events_bh") │ BH workqueue. Executes in softirq │
│ │ context, not process context. │
├───────────────────────────────────────┼─────────────────────────────────────────┤
│ system_power_efficient_wq │ Per-CPU normally; becomes unbound │
│ │ if workqueue.power_efficient is set. │
└───────────────────────────────────────┴─────────────────────────────────────────┘
Most drivers that need a simple deferred-work channel should use the system workqueue via schedule_work() or queue_work(system_percpu_wq, ...) rather than creating their own workqueue, as long as the work items are short-lived and don’t need special attributes.
Queueing Work: queue_work() and queue_work_on()
queue_work() is the primary API for submitting a work item to a workqueue. Defined at include/linux/workqueue.h, lines 696–700:
1
2
3
4
5
static inline bool queue_work(struct workqueue_struct *wq,
struct work_struct *work)
{
return queue_work_on(WORK_CPU_UNBOUND, wq, work);
}
It is a thin wrapper around queue_work_on(), which is the real entry point. queue_work_on() is defined at kernel/workqueue.c, lines 2442–2458:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
bool queue_work_on(int cpu, struct workqueue_struct *wq,
struct work_struct *work)
{
bool ret = false;
unsigned long irq_flags;
local_irq_save(irq_flags);
if (!test_and_set_bit(WORK_STRUCT_PENDING_BIT, work_data_bits(work)) &&
!clear_pending_if_disabled(work)) {
__queue_work(cpu, wq, work);
ret = true;
}
local_irq_restore(irq_flags);
return ret;
}
The critical operation is test_and_set_bit(WORK_STRUCT_PENDING_BIT, ...). This atomically tests bit 0 of work->data and sets it. If the bit was already set (the work is already pending), the function returns false without queueing. This is the mechanism that prevents double-queueing. Only if the PENDING bit was clear (and the work is not disabled) does it proceed to call __queue_work().
The function disables local IRQs (local_irq_save) to ensure atomicity — between setting the PENDING bit and actually inserting the work into the pool’s worklist, no interrupt can re-enter and find the work in an inconsistent state.
Return value: true if the work was successfully queued (it was not already pending), false if it was already on a queue.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
┌─────────────────────────────────────────────────────────────────────────────────┐
│ queue_work() / queue_work_on() High-Level Flow │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ Driver calls: queue_work(wq, &work) │
│ │ │
│ │ equivalent to: queue_work_on(WORK_CPU_UNBOUND, wq, &work) │
│ ▼ │
│ queue_work_on(cpu, wq, &work) │
│ │ │
│ ├── local_irq_save(irq_flags) │
│ │ │
│ ├── test_and_set_bit(PENDING, &work->data) │
│ │ │ │
│ │ ├── bit was 1 (already pending) │
│ │ │ → return false (do nothing) │
│ │ │ │
│ │ └── bit was 0 (not pending, now set to 1) │
│ │ │ │
│ │ ├── clear_pending_if_disabled(work)? │
│ │ │ YES (work is disabled) → return false │
│ │ │ NO → continue │
│ │ │ │
│ │ └── __queue_work(cpu, wq, &work) │
│ │ ├── determine target pool │
│ │ ├── handle non-reentrance │
│ │ ├── insert_work() into pool->worklist │
│ │ └── kick_pool() → wake idle kworker │
│ │ │
│ ├── local_irq_restore(irq_flags) │
│ └── return true │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Example: Queueing Work on a Specific CPU with queue_work_on()
This module queues a work item on a user-specified CPU via a module parameter, then verifies which CPU the handler actually runs on:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/workqueue.h>
#include <linux/sched.h>
MODULE_LICENSE("GPL");
static int cpu = 2;
module_param(cpu, int, 0644);
struct my_work {
struct work_struct work;
char data[20];
};
static struct my_work deferred_work;
static void work_fn(struct work_struct *work)
{
struct my_work *mw = container_of(work, struct my_work, work);
pr_info("handler running on CPU %d, pid %d (%s), data: %s\n",
smp_processor_id(), current->pid, current->comm, mw->data);
}
static int __init test_wq_init(void)
{
pr_info("queueing from CPU %d\n", smp_processor_id());
INIT_WORK(&deferred_work.work, work_fn);
strscpy(deferred_work.data, "hello from wq");
if (queue_work_on(cpu, system_wq, &deferred_work.work))
pr_info("work queued on CPU %d\n", cpu);
else
pr_err("work queuing failed\n");
return 0;
}
static void __exit test_wq_exit(void)
{
cancel_work_sync(&deferred_work.work);
}
module_init(test_wq_init);
module_exit(test_wq_exit);
Load with insmod hello.ko cpu=3 and check dmesg:
1
2
3
[ 42.001] queueing from CPU 0
[ 42.002] work queued on CPU 3
[ 42.003] handler running on CPU 3, pid 85 (kworker/3:1), data: hello from wq
The kworker/3:1 name confirms the handler ran on CPU 3’s normal-priority pool, worker ID 1. The queue_work_on() call forced the work item to CPU 3’s per-CPU pwq regardless of which CPU the module was loaded from. Note: system_wq is a per-CPU workqueue (WQ_PERCPU | __WQ_DEPRECATED), so queue_work_on(cpu, system_wq, ...) targets that CPU’s normal pool directly.
The Internal Queueing Path: __queue_work()
__queue_work() at kernel/workqueue.c, lines 2275–2411 is the heart of the queueing logic. It determines the target pool, handles the non-reentrance guarantee, and inserts the work item.
The flow is:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
┌─────────────────────────────────────────────────────────────────────────────────┐
│ __queue_work() Internal Flow │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ 1. DETERMINE CPU │
│ ● If cpu == WORK_CPU_UNBOUND: │
│ - For WQ_UNBOUND: call wq_select_unbound_cpu() to pick a CPU │
│ - For WQ_PERCPU: use raw_smp_processor_id() (current CPU) │
│ │
│ 2. FIND THE pwq AND pool │
│ ● pwq = rcu_dereference(*per_cpu_ptr(wq->cpu_pwq, cpu)) │
│ ● pool = pwq->pool │
│ │
│ 3. NON-REENTRANCE CHECK │
│ ● Get last_pool = pool where this work item was last executed │
│ ● If last_pool != current pool AND work is still running on last_pool: │
│ → Queue on last_pool instead (to prevent concurrent execution) │
│ ● Exception: ordered workqueues skip this (ordering guarantees exclusion) │
│ │
│ 4. LOCK THE POOL │
│ ● raw_spin_lock(&pool->lock) │
│ │
│ 5. INSERT THE WORK │
│ ● If pwq->nr_active < max_active: │
│ → insert_work(pwq, work, &pool->worklist) ← active │
│ → kick_pool(pool) to wake an idle worker │
│ ● Else: │
│ → insert_work(pwq, work, &pwq->inactive_works) ← inactive │
│ → Mark work with WORK_STRUCT_INACTIVE │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Key excerpt from the function showing the non-reentrance logic at kernel/workqueue.c, lines 2343–2362:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
last_pool = get_work_pool(work);
if (last_pool && last_pool != pool && !(wq->flags & __WQ_ORDERED)) {
struct worker *worker;
raw_spin_lock(&last_pool->lock);
worker = find_worker_executing_work(last_pool, work);
if (worker && worker->current_pwq->wq == wq) {
pwq = worker->current_pwq;
pool = pwq->pool;
} else {
/* not running there, queue here */
raw_spin_unlock(&last_pool->lock);
raw_spin_lock(&pool->lock);
}
}
This guarantees that if a work item is re-queued while it is still executing on a different pool, it will be queued on the same pool where it is currently running. This prevents the same work item’s function from running on two CPUs simultaneously — the workqueue’s non-reentrance guarantee.
How the Target Worker Pool Is Determined
When a work item is queued, the target worker pool is selected based on the workqueue type and the CPU:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Worker Pool Selection │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ queue_work(wq, &work) → cpu = WORK_CPU_UNBOUND │
│ │
│ Is wq WQ_UNBOUND? │
│ YES → cpu = wq_select_unbound_cpu(raw_smp_processor_id()) │
│ Prefers local CPU if in wq_unbound_cpumask, │
│ otherwise round-robin among allowed CPUs │
│ NO → cpu = raw_smp_processor_id() (queue on current CPU) │
│ │
│ Then: pwq = per_cpu_ptr(wq->cpu_pwq, cpu) │
│ pool = pwq->pool │
│ │
│ For per-CPU workqueues: │
│ pool is one of the two per-CPU pools (normal or highpri) │
│ For unbound workqueues: │
│ pool is a dynamically created unbound pool for the pod/node │
│ │
│ queue_work_on(cpu, wq, &work) → forces a specific CPU │
│ The pwq lookup is done with the specified cpu │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The wq_select_unbound_cpu() function at kernel/workqueue.c, lines 2255–2273 tries to use the local CPU if it is in the allowed cpumask; otherwise it round-robins among allowed CPUs using a per-CPU wq_rr_cpu_last counter.
How Priority Is Determined: Normal vs High Priority Worker Pool
Each CPU has two worker pools: normal priority (nice = 0) and high priority (nice = MIN_NICE = -20). Which pool a work item ends up in depends on the workqueue’s WQ_HIGHPRI flag.
When a workqueue is created with WQ_HIGHPRI, its per-CPU pwqs point to the high priority worker pool. When created without WQ_HIGHPRI, they point to the normal priority pool. This mapping is established in alloc_and_link_pwqs() during workqueue creation.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Priority Pool Selection │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ alloc_workqueue("my_wq", WQ_PERCPU, 0) │
│ → pwq->pool = per-CPU normal pool (nice = 0) │
│ → Workers run at normal scheduler priority │
│ │
│ alloc_workqueue("my_wq", WQ_HIGHPRI | WQ_PERCPU, 0) │
│ → pwq->pool = per-CPU high-priority pool (nice = -20) │
│ → Workers run at highest priority (MIN_NICE) │
│ → Work items execute before normal-priority work on the same CPU │
│ │
│ The scheduler decides which kworker runs first: │
│ kworker/0:H0 (nice=-20) will be scheduled before │
│ kworker/0:0 (nice=0) when both have pending work │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
What Happens If You Queue the Same Work Twice?
If you call queue_work() (or schedule_work()) on a work item that is already pending, the call fails silently and returns false. The work item is not queued a second time.
The mechanism is the WORK_STRUCT_PENDING_BIT (bit 0 of work->data). In queue_work_on() at kernel/workqueue.c, lines 2448–2454:
1
2
3
4
5
if (!test_and_set_bit(WORK_STRUCT_PENDING_BIT, work_data_bits(work)) &&
!clear_pending_if_disabled(work)) {
__queue_work(cpu, wq, work);
ret = true;
}
test_and_set_bit() is an atomic operation. On AArch64, it compiles to an LDXR/STXR (load-exclusive/store-exclusive) loop that atomically reads the current value of bit 0, sets it, and returns the old value. If the old value was already 1 (PENDING), the test_and_set_bit() returns true, the if condition fails, and __queue_work() is never called.
The PENDING bit is cleared later by set_work_pool_and_clear_pending() inside process_one_work() — just before the work handler function is called. This means:
- While the work is queued and waiting:
PENDING = 1→ re-queueing fails - While the work handler is executing:
PENDING = 0→ re-queueing succeeds (the work can be queued again even while its handler runs on a different invocation)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
┌─────────────────────────────────────────────────────────────────────────────────┐
│ PENDING Bit Lifecycle │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ queue_work() │
│ test_and_set_bit(PENDING) ─── was 0? ──→ set to 1, call __queue_work() │
│ └─ was 1? ──→ return false (already queued) │
│ │
│ ─── time passes, worker picks up work ─── │
│ │
│ process_one_work() │
│ set_work_pool_and_clear_pending() ─── clears PENDING bit (bit 0 → 0) │
│ worker->current_func(work) ─── calls the handler │
│ │
│ ─── during handler execution, PENDING is 0 ─── │
│ ─── re-queueing with queue_work() is now possible ─── │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Example: Attempting to Queue the Same Work Twice
This module calls queue_work() twice on the same work item without waiting. The second call fails because the PENDING bit is already set:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/workqueue.h>
MODULE_LICENSE("GPL");
static struct work_struct work;
static void work_fn(struct work_struct *work)
{
pr_info("handler executed on CPU %d\n", smp_processor_id());
}
static int __init test_wq_init(void)
{
INIT_WORK(&work, work_fn);
if (queue_work(system_wq, &work))
pr_info("first queue_work: success (PENDING was 0, now 1)\n");
else
pr_info("first queue_work: failed\n");
if (queue_work(system_wq, &work))
pr_info("second queue_work: success\n");
else
pr_info("second queue_work: failed (PENDING already 1)\n");
return 0;
}
static void __exit test_wq_exit(void)
{
cancel_work_sync(&work);
}
module_init(test_wq_init);
module_exit(test_wq_exit);
Expected dmesg output:
1
2
3
[ 10.001] first queue_work: success (PENDING was 0, now 1)
[ 10.002] second queue_work: failed (PENDING already 1)
[ 10.003] handler executed on CPU 0
The handler runs only once. The second queue_work() returns false because test_and_set_bit(WORK_STRUCT_PENDING_BIT) found the bit already set by the first call. This is the kernel’s protection against duplicate queueing — not an error, just a no-op. The work item can be re-queued after the handler runs (PENDING is cleared by process_one_work() before calling the handler).
What Happens When You Create Work vs When You Queue Work
Creating work (INIT_WORK or DECLARE_WORK) does nothing but initialize the work_struct fields — no threads are spawned, no data structures are modified, no locks are taken:
1
2
3
4
/* INIT_WORK just sets three fields: */
(_work)->data = (atomic_long_t) WORK_DATA_INIT(); /* pool=NONE, PENDING=0 */
INIT_LIST_HEAD(&(_work)->entry); /* empty list */
(_work)->func = (_func); /* handler function */
Queueing work (queue_work(), schedule_work()) is where the actual mechanism engages:
local_irq_save()— disable local interruptstest_and_set_bit(PENDING)— atomically claim the work item__queue_work()— determine the target pool, lock it, and insert the workinsert_work()— link the work into the pool’s worklist vialist_add_tail()kick_pool()— wake an idle worker to process the worklocal_irq_restore()— re-enable interrupts
The idle worker wakes up in worker_thread(), finds the work on pool->worklist, calls process_one_work(), which calls work->func(work).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Create Work vs Queue Work — Timeline │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ INIT_WORK(&work, handler) queue_work(wq, &work) │
│ ───────────────────── ────────────────────── │
│ │ │ │
│ ├ Set data = WORK_DATA_INIT() ├ local_irq_save() │
│ ├ Set entry = empty list ├ test_and_set_bit(PENDING) │
│ ├ Set func = handler ├ __queue_work() │
│ │ │ ├ determine target pool │
│ │ Nothing else happens. │ ├ lock pool │
│ │ No pool, no thread, no lock. │ ├ insert_work() → list_add_tail │
│ │ │ └ kick_pool() → wake kworker │
│ │ Cost: ~3 stores ├ local_irq_restore() │
│ │ │ │
│ │ │ Cost: atomic op + spinlock + list insert │
│ │ │ + potential thread wakeup │
│ ▼ ▼ │
│ work is initialized but work is on pool->worklist, │
│ dormant — does nothing kworker will call handler │
│ until queued │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
insert_work(): Linking the Work Item to the Pool
insert_work() at kernel/workqueue.c, lines 2220–2232 performs the actual linkage:
1
2
3
4
5
6
7
8
9
10
11
12
13
static void insert_work(struct pool_workqueue *pwq, struct work_struct *work,
struct list_head *head, unsigned int extra_flags)
{
debug_work_activate(work);
/* record the work call stack in order to print it in KASAN reports */
kasan_record_aux_stack(work);
/* we own @work, set data and link */
set_work_pwq(work, pwq, extra_flags);
list_add_tail(&work->entry, head);
get_pwq(pwq);
}
set_work_pwq() writes the pwq pointer and flags into work->data (setting the WORK_STRUCT_PWQ bit to indicate that data now points to a pwq). list_add_tail() appends the work to the tail of either pool->worklist (if active) or pwq->inactive_works (if the max_active limit is reached). get_pwq() increments the pwq’s reference count to prevent it from being freed while work is in flight.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
┌─────────────────────────────────────────────────────────────────────────────────┐
│ insert_work() — List Linkage │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ BEFORE insert_work(): │
│ │
│ pool->worklist ──→ [work_A] ──→ [work_B] ──→ (back to head) │
│ │
│ new_work->data = old pool ID (off-queue encoding) │
│ new_work->entry = empty list (points to self) │
│ │
│ AFTER insert_work(pwq, new_work, &pool->worklist, flags): │
│ │
│ 1. set_work_pwq(new_work, pwq, flags) │
│ → new_work->data = pwq pointer | PENDING | PWQ | color | flags │
│ │
│ 2. list_add_tail(&new_work->entry, &pool->worklist) │
│ → appends to tail (FIFO order) │
│ │
│ pool->worklist ──→ [work_A] ──→ [work_B] ──→ [new_work] ──→ (back to head) │
│ ▲ │
│ │ │
│ worker picks from HEAD (first in, first out) │
│ │
│ 3. get_pwq(pwq) │
│ → pwq->refcnt++ (prevents pwq teardown while work is in flight) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
schedule_work() and schedule_work_on()
schedule_work() and schedule_work_on() are convenience wrappers that queue work on the system per-CPU workqueue (system_percpu_wq). Defined at include/linux/workqueue.h, lines 758–761 and lines 739–742:
1
2
3
4
5
6
7
8
9
static inline bool schedule_work(struct work_struct *work)
{
return queue_work(system_percpu_wq, work);
}
static inline bool schedule_work_on(int cpu, struct work_struct *work)
{
return queue_work_on(cpu, system_percpu_wq, work);
}
schedule_work(&work) is equivalent to queue_work(system_percpu_wq, &work) — it queues on the default per-CPU system workqueue. The work will execute on the CPU where it was queued (though it may migrate if that CPU goes offline).
schedule_work_on(cpu, &work) forces the work to run on a specific CPU by calling queue_work_on() with that CPU number. This is useful when the work handler needs to access per-CPU data or when you want to ensure locality.
Use schedule_work() when your work item is short-lived and doesn’t need special workqueue attributes. Use queue_work() with your own workqueue when you need specific flags or isolation.
schedule_work vs queue_work — The Key Difference
Both schedule_work() and queue_work() end up calling queue_work_on() → __queue_work() → insert_work(). The only difference is the target workqueue:
schedule_work(&work)=queue_work(system_percpu_wq, &work)— uses the global per-CPU system workqueue. Simple, no allocation needed, but shared with all other users ofsystem_percpu_wq. If your handler runs for a long time, it delays other work items on the same CPU’s pool.queue_work(wq, &work)— uses a workqueue you specify. This could besystem_highpri_wq(for priority),system_long_wq(flaggedWQ_CPU_INTENSIVEso long-running handlers don’t block concurrency management),system_dfl_wq(unbound, for CPU-agnostic work), or a custom workqueue created withalloc_workqueue().
The work handler executes in the same way regardless — both run in process context via a kworker thread. The choice only affects which pool the work lands in (which determines priority, CPU binding, and concurrency accounting) and whether your work items share max_active limits with other subsystems.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
┌─────────────────────────────────────────────────────────────────────────────────┐
│ schedule_work() vs queue_work() — Decision Guide │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ Need to defer work to process context? │
│ │ │
│ ├── Short-lived, no special requirements? │
│ │ → schedule_work(&work) │
│ │ Uses system_percpu_wq, current CPU, normal priority │
│ │ │
│ ├── Need a specific CPU? │
│ │ → schedule_work_on(cpu, &work) │
│ │ Still uses system_percpu_wq │
│ │ │
│ ├── Need high priority? │
│ │ → queue_work(system_highpri_wq, &work) │
│ │ │
│ ├── Long-running work? │
│ │ → queue_work(system_long_wq, &work) │
│ │ │
│ ├── Need CPU-unbound execution? │
│ │ → queue_work(system_dfl_wq, &work) │
│ │ │
│ └── Need isolation / custom flags / max_active control? │
│ → alloc_workqueue() + queue_work(my_wq, &work) │
│ (See Part 6b for custom workqueue creation) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Example: Multiple Work Items Sharing the Same Handler (FIFO Order)
Two separate work_struct instances can use the same handler function. Each carries its own private data via container_of(). They execute in FIFO order on the pool’s worklist:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/workqueue.h>
#include <linux/sched.h>
MODULE_LICENSE("GPL");
struct my_work {
struct work_struct work;
char data[20];
};
static struct my_work deferred_work1, deferred_work2;
static void work_fn(struct work_struct *work)
{
struct my_work *mw = container_of(work, struct my_work, work);
pr_info("CPU %d, pid %d (%s), data: %s\n",
smp_processor_id(), current->pid, current->comm, mw->data);
}
static int __init test_wq_init(void)
{
INIT_WORK(&deferred_work1.work, work_fn);
INIT_WORK(&deferred_work2.work, work_fn);
strscpy(deferred_work1.data, "first item");
strscpy(deferred_work2.data, "second item");
schedule_work(&deferred_work1.work);
schedule_work(&deferred_work2.work);
return 0;
}
static void __exit test_wq_exit(void)
{
cancel_work_sync(&deferred_work1.work);
cancel_work_sync(&deferred_work2.work);
}
module_init(test_wq_init);
module_exit(test_wq_exit);
Expected dmesg output:
1
2
[ 15.001] CPU 0, pid 42 (kworker/0:1), data: first item
[ 15.002] CPU 0, pid 42 (kworker/0:1), data: second item
Both work items are separate work_struct instances — each has its own PENDING bit, so both are queued successfully. They share the same handler function, which uses container_of() to retrieve the correct private data for each invocation. The items execute in FIFO order because insert_work() appends to the tail of the worklist via list_add_tail(), and the worker picks from the head via list_first_entry(). Both run on the same kworker because keep_working() returns true (the worker processes the second item without sleeping, since nr_running is still 1).
How to Pass Private Data to a Work Function
The work function signature is void (*)(struct work_struct *work) — it receives a pointer to the work_struct, not a generic data pointer. To pass private data, embed the work_struct inside your own structure and use container_of() (or the workqueue-specific from_work() macro) to recover the enclosing structure:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
struct my_device {
struct pci_dev *pdev;
void __iomem *regs;
int irq_status;
struct work_struct irq_work; /* embedded work_struct */
};
static void my_work_handler(struct work_struct *work)
{
/* Recover the enclosing my_device from the work_struct pointer */
struct my_device *dev = container_of(work, struct my_device, irq_work);
/* Now access private data freely */
pr_info("Processing IRQ status: %d\n", dev->irq_status);
iowrite32(0, dev->regs + IRQ_ACK);
}
The from_work() macro at include/linux/workqueue.h, lines 610–611 provides a type-safe alternative:
1
2
#define from_work(var, callback_work, work_fieldname) \
container_of(callback_work, typeof(*var), work_fieldname)
Used as:
1
2
3
4
5
static void my_work_handler(struct work_struct *work)
{
struct my_device *dev = from_work(dev, work, irq_work);
/* ... */
}
container_of in the Linux Kernel
container_of() is one of the most heavily used macros in the Linux kernel. It takes a pointer to a member of a structure and calculates the pointer to the enclosing structure. Defined at include/linux/container_of.h, lines 19–24:
1
2
3
4
5
6
#define container_of(ptr, type, member) ({ \
void *__mptr = (void *)(ptr); \
static_assert(__same_type(*(ptr), ((type *)0)->member) || \
__same_type(*(ptr), void), \
"pointer type mismatch in container_of()"); \
((type *)(__mptr - offsetof(type, member))); })
The math is simple: subtract the offset of the member from the member’s address to get the start of the enclosing structure.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
┌─────────────────────────────────────────────────────────────────────────────────┐
│ container_of() — How It Works │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ struct my_device { │
│ struct pci_dev *pdev; /* offset 0 */ │
│ void __iomem *regs; /* offset 8 */ │
│ int irq_status; /* offset 16 */ │
│ struct work_struct irq_work; /* offset 24 */ ← ptr points here │
│ }; │
│ │
│ container_of(ptr, struct my_device, irq_work) │
│ │
│ = (struct my_device *)(ptr - offsetof(struct my_device, irq_work)) │
│ = (struct my_device *)(ptr - 24) │
│ = pointer to the beginning of my_device │
│ │
│ Memory layout: │
│ ┌────────┬────────┬────────────┬─────────────────┐ │
│ │ pdev │ regs │ irq_status │ irq_work │ │
│ └────────┴────────┴────────────┴─────────────────┘ │
│ ▲ ▲ │
│ │ │ │
│ result (ptr - 24) ptr (passed to work handler) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The static_assert ensures at compile time that the pointer type matches the member type — a compile error is generated if you pass the wrong pointer or member name.
For new code, container_of_const() at include/linux/container_of.h, lines 35–39 is preferred because it preserves const-ness using _Generic.
The Worker Thread Function: worker_thread()
Every kworker thread runs the worker_thread() function at kernel/workqueue.c, lines 3431–3503. This is the main execution loop:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
static int worker_thread(void *__worker)
{
struct worker *worker = __worker;
struct worker_pool *pool = worker->pool;
/* tell the scheduler that this is a workqueue worker */
set_pf_worker(true);
woke_up:
raw_spin_lock_irq(&pool->lock);
/* am I supposed to die? */
if (unlikely(worker->flags & WORKER_DIE)) {
raw_spin_unlock_irq(&pool->lock);
set_pf_worker(false);
worker->pool = NULL;
ida_free(&pool->worker_ida, worker->id);
return 0;
}
worker_leave_idle(worker);
recheck:
/* no more worker necessary? */
if (!need_more_worker(pool))
goto sleep;
/* do we need to manage? */
if (unlikely(!may_start_working(pool)) && manage_workers(worker))
goto recheck;
worker_clr_flags(worker, WORKER_PREP | WORKER_REBOUND);
do {
struct work_struct *work =
list_first_entry(&pool->worklist,
struct work_struct, entry);
if (assign_work(work, worker, NULL))
process_scheduled_works(worker);
} while (keep_working(pool));
worker_set_flags(worker, WORKER_PREP);
sleep:
worker_enter_idle(worker);
__set_current_state(TASK_IDLE);
raw_spin_unlock_irq(&pool->lock);
schedule();
goto woke_up;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
┌─────────────────────────────────────────────────────────────────────────────────┐
│ worker_thread() Main Loop │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ woke_up: │
│ ├── Lock pool │
│ ├── Check WORKER_DIE flag → exit if set │
│ ├── Leave idle state │
│ │ │
│ recheck: │
│ ├── need_more_worker(pool)? │
│ │ = !list_empty(&pool->worklist) && !pool->nr_running │
│ │ NO → goto sleep │
│ │ YES → continue │
│ │ │
│ ├── may_start_working(pool)? │
│ │ = pool->nr_idle > 0 │
│ │ NO → manage_workers() (create new workers) │
│ │ │
│ ├── PROCESS WORK LOOP: │
│ │ do { │
│ │ work = first entry from pool->worklist │
│ │ assign_work(work, worker) │
│ │ process_scheduled_works(worker) │
│ │ } while (keep_working(pool)) │
│ │ │
│ │ keep_working(pool) = │
│ │ !list_empty(&pool->worklist) && pool->nr_running <= 1 │
│ │ │
│ sleep: │
│ ├── Enter idle state │
│ ├── __set_current_state(TASK_IDLE) │
│ ├── Unlock pool │
│ ├── schedule() ← goes to sleep here │
│ └── goto woke_up │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The concurrency management functions at kernel/workqueue.c, lines 950–965 control the loop:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
static bool need_more_worker(struct worker_pool *pool)
{
return !list_empty(&pool->worklist) && !pool->nr_running;
}
static bool may_start_working(struct worker_pool *pool)
{
return pool->nr_idle;
}
static bool keep_working(struct worker_pool *pool)
{
return !list_empty(&pool->worklist) && (pool->nr_running <= 1);
}
keep_working() returns true as long as there are pending work items and at most one worker is running. The nr_running <= 1 check ensures that a worker keeps processing items without creating unnecessary concurrency — only when the worker sleeps (nr_running drops to 0) does another worker get woken.
These three functions together implement the pool’s concurrency policy:
need_more_worker(): “Should any worker wake up?” — Only if there’s work AND nobody is running. This prevents thundering herd — if one worker is already processing, don’t wake more.may_start_working(): “Is there a safety net?” — Only if there’s at least one idle worker left. Ifnr_idle == 0, we must create a new worker before processing work, so that if the current work handler blocks, there’s someone to take over.keep_working(): “Should I keep going after finishing one item?” — Only if there’s more work AND I’m the sole runner (nr_running <= 1). If another worker woke up (perhaps because I blocked mid-item and a replacement was created), I should yield.
The may_start_working() check before manage_workers() is the key to forward progress. Without it, a pool could reach a state where the only worker is about to call a handler that might sleep, with no idle workers to take over — a potential deadlock if the handler waits for something that requires another work item on the same pool.
Processing a Single Work Item: process_one_work()
process_one_work() at kernel/workqueue.c, lines 3220–3380 handles the execution of a single work item. It releases pool->lock, calls the work function, and re-acquires the lock:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
static void process_one_work(struct worker *worker, struct work_struct *work)
{
struct pool_workqueue *pwq = get_work_pwq(work);
struct worker_pool *pool = worker->pool;
/* claim and dequeue */
hash_add(pool->busy_hash, &worker->hentry, (unsigned long)work);
worker->current_work = work;
worker->current_func = work->func;
worker->current_pwq = pwq;
list_del_init(&work->entry);
/* CPU intensive works don't participate in concurrency management */
if (unlikely(pwq->wq->flags & WQ_CPU_INTENSIVE))
worker_set_flags(worker, WORKER_CPU_INTENSIVE);
/* wake another worker if needed (for UNBOUND and CPU_INTENSIVE) */
kick_pool(pool);
/* clear PENDING — the work item is now "running", can be re-queued */
set_work_pool_and_clear_pending(work, pool->id, pool_offq_flags(pool));
pwq->stats[PWQ_STAT_STARTED]++;
raw_spin_unlock_irq(&pool->lock);
/* ──── EXECUTE THE WORK HANDLER ──── */
worker->current_func(work);
/* cond_resched() to prevent hogging CPU on !PREEMPTION kernels */
if (worker->task)
cond_resched();
raw_spin_lock_irq(&pool->lock);
pwq->stats[PWQ_STAT_COMPLETED]++;
worker_clr_flags(worker, WORKER_CPU_INTENSIVE);
/* release */
hash_del(&worker->hentry);
worker->current_work = NULL;
worker->current_func = NULL;
worker->current_pwq = NULL;
pwq_dec_nr_in_flight(pwq, work_data);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
┌─────────────────────────────────────────────────────────────────────────────────┐
│ process_one_work() Execution Flow │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ process_one_work(worker, work) [pool->lock HELD] │
│ │ │
│ ├── hash_add(pool->busy_hash, worker, work) mark worker as busy │
│ ├── worker->current_work = work │
│ ├── worker->current_func = work->func │
│ ├── worker->current_pwq = pwq │
│ │ │
│ ├── list_del_init(&work->entry) remove from worklist │
│ │ │
│ ├── WQ_CPU_INTENSIVE? │
│ │ YES → worker_set_flags(WORKER_CPU_INTENSIVE) │
│ │ (excluded from nr_running count) │
│ │ │
│ ├── kick_pool(pool) wake another worker │
│ │ if needed │
│ │ │
│ ├── set_work_pool_and_clear_pending(work) ◄── PENDING bit cleared │
│ │ (work can now be re-queued!) BEFORE handler runs │
│ │ │
│ ├── raw_spin_unlock_irq(&pool->lock) ◄── LOCK RELEASED │
│ │ │
│ │ ╔═══════════════════════════════════════╗ │
│ │ ║ worker->current_func(work) ║ ◄── HANDLER EXECUTES │
│ │ ║ (runs in process context, can sleep) ║ with pool lock released │
│ │ ╚═══════════════════════════════════════╝ │
│ │ │
│ ├── cond_resched() yield CPU if needed │
│ │ │
│ ├── raw_spin_lock_irq(&pool->lock) ◄── LOCK RE-ACQUIRED │
│ │ │
│ ├── hash_del(&worker->hentry) remove from busy_hash │
│ ├── worker->current_work = NULL clear current state │
│ ├── worker->current_func = NULL │
│ ├── worker->current_pwq = NULL │
│ │ │
│ └── pwq_dec_nr_in_flight(pwq) may activate inactive work │
│ nr_active-- → if below max_active, │
│ move work from pwq->inactive_works to pool->worklist │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Key points:
The worker is added to
pool->busy_hashkeyed by the work item’s address — this is howfind_worker_executing_work()can find which worker is executing a given work item (used by__queue_work()for the non-reentrance check).set_work_pool_and_clear_pending()clears thePENDINGbit before calling the handler. This design choice is deliberate: it allows the work item to be re-queued from within its own handler (e.g., for periodic work that re-queues itself at the end of each invocation) or from an interrupt handler that fires while the work handler is running. The re-queued instance will run after the current handler returns — the non-reentrance check in__queue_work()ensures it is queued on the same pool, andkeep_working()ensures sequential execution.For
WQ_CPU_INTENSIVEworkqueues, the worker is markedWORKER_CPU_INTENSIVE, which makes it no longer participate in concurrency management (WORKER_NOT_RUNNING).kick_pool()then wakes another idle worker to handle other pending work items, ensuring that CPU-intensive work doesn’t starve the pool.After the handler returns,
cond_resched()is called to yield the CPU if needed — this prevents a re-queueing work item from monopolizing the CPU on non-preemptible kernels.
Execution Context: Process Context, Not Interrupt Context
Both the work handler and the worker thread run in process context. This is the fundamental difference between workqueues and softirqs/tasklets:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Workqueue Execution Context │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ Context: Process context (preempt_count = 0) │
│ IRQs: ENABLED │
│ Sleeping: ALLOWED — can take mutexes, do blocking I/O │
│ Preemption: ENABLED (on PREEMPT kernels) │
│ in_hardirq(): false │
│ in_softirq(): false │
│ in_task(): true │
│ in_interrupt(): false │
│ current: points to the kworker thread's own task_struct │
│ │
│ WHAT YOU CAN DO: │
│ ● Sleep (schedule()) │
│ ● Take mutexes (mutex_lock()) │
│ ● Allocate memory with GFP_KERNEL │
│ ● Do blocking I/O │
│ ● Call any function that is legal in process context │
│ │
│ WHAT YOU SHOULD AVOID: │
│ ● Holding spinlocks for long periods (blocks other work items) │
│ ● Very long-running operations on system_percpu_wq (blocks flush) │
│ ● Deadlock with your own flush/cancel calls │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The worker thread sets PF_WQ_WORKER in its task_struct->flags at the beginning of worker_thread() via set_pf_worker(true) at kernel/workqueue.c, line 3437. The scheduler checks this flag to hook into the concurrency management (via wq_worker_running() and wq_worker_sleeping()).
Example: Verifying Process Context and IRQ State at Runtime
This module proves that workqueue handlers run in process context with IRQs enabled — confirming the theory above with runtime checks:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/workqueue.h>
#include <linux/sched.h>
MODULE_LICENSE("GPL");
struct my_work {
struct work_struct work;
char data[20];
};
static struct my_work deferred_work;
static void work_fn(struct work_struct *work)
{
struct my_work *mw = container_of(work, struct my_work, work);
pr_info("data: %s\n", mw->data);
pr_info("current pid: %d, process: %s\n", current->pid, current->comm);
if (in_interrupt())
pr_info("UNEXPECTED: running in interrupt context\n");
else
pr_info("running in process context (as expected)\n");
if (irqs_disabled())
pr_info("UNEXPECTED: IRQs disabled\n");
else
pr_info("IRQs enabled (as expected)\n");
pr_info("in_task(): %d, in_softirq(): %d, in_hardirq(): %d\n",
in_task(), in_softirq(), in_hardirq());
}
static int __init test_wq_init(void)
{
INIT_WORK(&deferred_work.work, work_fn);
strscpy(deferred_work.data, "context test");
schedule_work(&deferred_work.work);
return 0;
}
static void __exit test_wq_exit(void)
{
cancel_work_sync(&deferred_work.work);
}
module_init(test_wq_init);
module_exit(test_wq_exit);
Expected dmesg output:
1
2
3
4
5
[ 20.001] data: context test
[ 20.002] current pid: 42, process: kworker/0:1
[ 20.003] running in process context (as expected)
[ 20.004] IRQs enabled (as expected)
[ 20.005] in_task(): 1, in_softirq(): 0, in_hardirq(): 0
The output confirms: in_interrupt() returns false (not in interrupt context), irqs_disabled() returns false (interrupts are enabled), in_task() returns true, and both in_softirq() and in_hardirq() return false. This is why workqueue handlers can safely call mutex_lock(), kmalloc(GFP_KERNEL), msleep(), and any other function that requires process context. Compare this with a tasklet handler, where in_interrupt() would return true and in_softirq() would return non-zero.
The Value of current for a Worker Thread
Inside a work handler, current points to the kworker thread’s own task_struct — not a borrowed reference like in softirq context. The kworker thread has its own PID, its own kernel stack, and its own scheduling state.
1
2
3
4
5
6
7
static void my_work_handler(struct work_struct *work)
{
/* current is the kworker thread itself */
pr_info("Running in process: %s (pid %d)\n",
current->comm, task_pid_nr(current));
/* Output: "Running in process: kworker/0:1 (pid 42)" */
}
You can verify this by calling current_wq_worker() at kernel/workqueue_internal.h, lines 68–73:
1
2
3
4
5
6
static inline struct worker *current_wq_worker(void)
{
if (in_task() && (current->flags & PF_WQ_WORKER))
return kthread_data(current);
return NULL;
}
If called from a work handler, this returns a non-NULL pointer to the struct worker executing the current work.
A Simple Example Using the System Workqueue
Here is a complete, minimal kernel module that uses the system workqueue to defer work from a timer callback:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
#include <linux/module.h>
#include <linux/workqueue.h>
#include <linux/timer.h>
#include <linux/jiffies.h>
struct my_device {
struct work_struct work;
int counter;
};
static struct my_device mydev;
static void my_work_handler(struct work_struct *work)
{
struct my_device *dev = container_of(work, struct my_device, work);
dev->counter++;
pr_info("Work handler: counter = %d, pid = %d (%s)\n",
dev->counter, current->pid, current->comm);
}
static int __init my_init(void)
{
INIT_WORK(&mydev.work, my_work_handler);
mydev.counter = 0;
/* Queue work on the system per-CPU workqueue */
schedule_work(&mydev.work);
return 0;
}
static void __exit my_exit(void)
{
cancel_work_sync(&mydev.work);
}
module_init(my_init);
module_exit(my_exit);
MODULE_LICENSE("GPL");
schedule_work(&mydev.work) queues the work on system_percpu_wq. The handler runs in process context — current->comm will print something like kworker/0:1. In the module exit function, cancel_work_sync() ensures the work item has completed before the module is unloaded.
Enabling and Disabling Work Items
Unlike tasklets (which use a reference-counted count field to enable/disable), work items in the modern kernel have disable_work() and enable_work() APIs. Defined at kernel/workqueue.c, lines 4584–4634:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
bool disable_work(struct work_struct *work)
{
return __cancel_work(work, WORK_CANCEL_DISABLE);
}
bool disable_work_sync(struct work_struct *work)
{
return __cancel_work_sync(work, WORK_CANCEL_DISABLE);
}
bool enable_work(struct work_struct *work)
{
struct work_offq_data offqd;
unsigned long irq_flags;
work_grab_pending(work, 0, &irq_flags);
work_offqd_unpack(&offqd, *work_data_bits(work));
work_offqd_enable(&offqd);
set_work_pool_and_clear_pending(work, offqd.pool_id,
work_offqd_pack_flags(&offqd));
local_irq_restore(irq_flags);
return !offqd.disable;
}
disable_work() increments the work item’s disable depth (a 16-bit counter stored in the off-queue data field) and cancels the work if currently pending. While the disable count is non-zero, any call to queue_work() on this work item will fail — the clear_pending_if_disabled() check in queue_work_on() will clear the PENDING bit without actually queueing.
disable_work_sync() is like disable_work() but also waits for the work item to finish if it is currently executing.
enable_work() decrements the disable depth. When the depth reaches zero, the work can be queued again.
The maximum supported disable depth is 2^16 - 1 = 65535, encoded in WORK_OFFQ_DISABLE_BITS = 16 at include/linux/workqueue.h, line 64.
Delayed Work Disable/Enable Variants
For delayed work items, equivalent APIs exist at kernel/workqueue.c, lines 4642–4672:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
bool disable_delayed_work(struct delayed_work *dwork)
{
return __cancel_work(&dwork->work,
WORK_CANCEL_DELAYED | WORK_CANCEL_DISABLE);
}
bool disable_delayed_work_sync(struct delayed_work *dwork)
{
return __cancel_work_sync(&dwork->work,
WORK_CANCEL_DELAYED | WORK_CANCEL_DISABLE);
}
bool enable_delayed_work(struct delayed_work *dwork)
{
return enable_work(&dwork->work);
}
These mirror the non-delayed variants but also handle the timer cancellation via WORK_CANCEL_DELAYED. Use disable_delayed_work() / enable_delayed_work() instead of disable_work() / enable_work() when operating on a delayed_work.
1
2
3
4
5
6
7
8
9
10
11
┌──────────────────────────────┬───────────────────────────────────────────────┐
│ API │ Description │
├──────────────────────────────┼───────────────────────────────────────────────┤
│ disable_work(&work) │ Disable + cancel, no wait. Any context. │
│ disable_work_sync(&work) │ Disable + cancel + wait. Sleepable context. │
│ enable_work(&work) │ Decrement disable depth. Re-enables at 0. │
├──────────────────────────────┼───────────────────────────────────────────────┤
│ disable_delayed_work(&dw) │ Same + handles timer. Any context. │
│ disable_delayed_work_sync() │ Same + handles timer + waits. Sleepable. │
│ enable_delayed_work(&dw) │ Calls enable_work() on embedded work. │
└──────────────────────────────┴───────────────────────────────────────────────┘
cancel_work_sync(): Cancel and Wait
cancel_work_sync() at kernel/workqueue.c, lines 4529–4533 cancels a pending work item and waits for it to finish if it is currently executing:
1
2
3
4
bool cancel_work_sync(struct work_struct *work)
{
return __cancel_work_sync(work, 0);
}
The internal __cancel_work_sync() at kernel/workqueue.c, lines 4478–4500:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
static bool __cancel_work_sync(struct work_struct *work, u32 cflags)
{
bool ret;
ret = __cancel_work(work, cflags | WORK_CANCEL_DISABLE);
if (*work_data_bits(work) & WORK_OFFQ_BH)
WARN_ON_ONCE(in_hardirq());
else
might_sleep();
/* wait for the work to finish if currently executing */
if (wq_online)
__flush_work(work, true);
if (!(cflags & WORK_CANCEL_DISABLE))
enable_work(work);
return ret;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
┌─────────────────────────────────────────────────────────────────────────────────┐
│ cancel_work_sync() Flow │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ cancel_work_sync(&work) │
│ │ │
│ └── __cancel_work_sync(&work, 0) │
│ │ │
│ ├── __cancel_work(&work, WORK_CANCEL_DISABLE) │
│ │ │ │
│ │ ├── work_grab_pending(&work) │
│ │ │ ├── test_and_set_bit(PENDING) │
│ │ │ │ was 1 → work was pending, dequeue it │
│ │ │ │ was 0 → work was not pending │
│ │ │ └── returns: true if was pending │
│ │ │ │
│ │ └── increment disable depth (prevents re-queueing during wait) │
│ │ │
│ ├── might_sleep() ← enforces process context │
│ │ │
│ ├── wq_online? │
│ │ YES → __flush_work(&work, true) │
│ │ ├── work currently executing? │
│ │ │ YES → insert barrier, sleep until handler finishes │
│ │ │ NO → return immediately │
│ │ └── guaranteed: handler is done on return │
│ │ │
│ ├── enable_work(&work) ← re-enable (decrement disable) │
│ │ │
│ └── return: true if work was pending, false if already idle │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The function first grabs the PENDING bit (which dequeues the work if it was pending), then calls __flush_work() to wait for any currently-executing instance to complete. It temporarily disables the work (to prevent re-queueing during the wait) and then re-enables it before returning.
Return value: true if the work was pending (was actually canceled), false if it was already idle.
Context requirement: Must be called from a sleepable context (process context). It calls might_sleep() to enforce this.
Important: cancel_work_sync(&delayed_work->work) must not be used for delayed_work — use cancel_delayed_work_sync() instead, which handles the timer as well.
When to Use cancel_work_sync vs flush_work
The choice between these two APIs depends on your intent:
cancel_work_sync()— Use in teardown paths (module exit, device removal, error cleanup). The intent is “stop this work and make sure it’s done.” Aftercancel_work_sync()returns, the work will not execute — if it was pending, it was dequeued; if it was running, it finished. It is safe to free thework_struct(and its containing structure) immediately after this call.flush_work()— Use when you need ordering (“wait for this work to finish, then proceed”). The intent is “let it finish, I need its result.” If the work is pending,flush_work()waits for it to execute AND complete. It does not prevent the work from being re-queued. Typical use: a driver queues a firmware load via a work item, then callsflush_work()before using the firmware.Neither — If you just need to know whether work is pending, use
work_pending(&work)(checks the PENDING bit). If you need to disable a work item temporarily without canceling it, usedisable_work()/enable_work().
A common anti-pattern is calling flush_work() in module exit instead of cancel_work_sync(). If the work re-queues itself (periodic pattern), flush_work() only waits for the current instance — the work will re-queue during the handler and execute again after flush_work() returns. cancel_work_sync() avoids this because it temporarily disables the work during the wait.
Example: cancel_work_sync() Waiting for a Long-Running Handler
This module demonstrates that cancel_work_sync() blocks until a running handler completes. The handler sleeps for 10 seconds — if you rmmod during that window, the module exit function blocks inside cancel_work_sync() until the sleep finishes:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/workqueue.h>
#include <linux/sched.h>
#include <linux/delay.h>
MODULE_LICENSE("GPL");
struct my_work {
struct work_struct work;
char data[20];
};
static struct my_work deferred_work;
static void work_fn(struct work_struct *work)
{
struct my_work *mw = container_of(work, struct my_work, work);
pr_info("handler start on CPU %d (%s), data: %s\n",
smp_processor_id(), current->comm, mw->data);
msleep(10000);
pr_info("handler done after 10s sleep\n");
}
static int __init test_wq_init(void)
{
INIT_WORK(&deferred_work.work, work_fn);
strscpy(deferred_work.data, "long work");
schedule_work(&deferred_work.work);
pr_info("work queued, module loaded\n");
return 0;
}
static void __exit test_wq_exit(void)
{
pr_info("exit: calling cancel_work_sync (will block if handler is running)...\n");
if (cancel_work_sync(&deferred_work.work))
pr_info("exit: work was pending, cancelled before execution\n");
else
pr_info("exit: work was not pending (already ran or currently running)\n");
pr_info("exit: cancel_work_sync returned, safe to unload\n");
}
module_init(test_wq_init);
module_exit(test_wq_exit);
If you rmmod within 10 seconds of insmod, the rmmod command hangs until the handler finishes:
1
2
3
4
5
6
7
[ 50.001] work queued, module loaded
[ 50.002] handler start on CPU 0 (kworker/0:1), data: long work
← rmmod issued at ~52s, shell blocks here
[ 60.002] handler done after 10s sleep
[ 60.003] exit: calling cancel_work_sync (will block if handler is running)...
[ 60.003] exit: work was not pending (already ran or currently running)
[ 60.003] exit: cancel_work_sync returned, safe to unload
This is the correct pattern for module cleanup. cancel_work_sync() returns false because the work was not pending (it was already executing, not waiting in the worklist). Internally, cancel_work_sync() calls __flush_work() which inserts a barrier work item after the currently-executing item and sleeps until the barrier completes. Without cancel_work_sync() in the exit function, rmmod would free the module’s code and data while the handler is still accessing deferred_work.data — a use-after-free crash.
flush_work(): Wait for Completion
flush_work() at kernel/workqueue.c, lines 4392–4397 waits for a work item to finish executing:
1
2
3
4
5
bool flush_work(struct work_struct *work)
{
might_sleep();
return __flush_work(work, false);
}
Unlike cancel_work_sync(), flush_work() does not dequeue the work item. If the work is pending (queued but not yet executing), flush_work() waits for it to be executed and complete. If the work is currently executing, it waits for that execution to finish.
Return value: true if it waited for the work to finish, false if the work was already idle (neither pending nor executing).
Note: If the work is re-queued while flush_work() is waiting, the flush only guarantees completion of the instance that was pending at the time of the call.
1
2
3
4
5
6
7
8
9
10
┌──────────────────────────────────┬──────────────────────────────────────────────┐
│ flush_work() │ cancel_work_sync() │
├──────────────────────────────────┼──────────────────────────────────────────────┤
│ Waits for execution │ Dequeues + waits for execution │
│ Does NOT dequeue pending work │ Dequeues pending work │
│ Work will still execute │ Work will NOT execute (if pending) │
│ Returns true if waited │ Returns true if was pending │
│ Sleepable context required │ Sleepable context required │
│ Use: "let it finish" │ Use: "stop it now" (module exit) │
└──────────────────────────────────┴──────────────────────────────────────────────┘
Example: Using flush_work() to Synchronize Before Proceeding
This module queues two work items and calls flush_work() on the second one to ensure both complete before module_init finishes. Unlike cancel_work_sync(), flush_work() does not dequeue — it waits for the work to execute and finish:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/workqueue.h>
#include <linux/sched.h>
MODULE_LICENSE("GPL");
struct my_work {
struct work_struct work;
char data[20];
};
static struct my_work deferred_work1, deferred_work2;
static void work_fn(struct work_struct *work)
{
struct my_work *mw = container_of(work, struct my_work, work);
pr_info("CPU %d (%s): %s\n",
smp_processor_id(), current->comm, mw->data);
}
static int __init test_wq_init(void)
{
INIT_WORK(&deferred_work1.work, work_fn);
INIT_WORK(&deferred_work2.work, work_fn);
strscpy(deferred_work1.data, "first item");
strscpy(deferred_work2.data, "second item");
schedule_work(&deferred_work1.work);
schedule_work(&deferred_work2.work);
if (flush_work(&deferred_work2.work))
pr_info("flush_work returned true: waited for work2 to finish\n");
else
pr_info("flush_work returned false: work2 was already idle\n");
pr_info("init complete — both work items are done\n");
return 0;
}
static void __exit test_wq_exit(void)
{
cancel_work_sync(&deferred_work1.work);
cancel_work_sync(&deferred_work2.work);
}
module_init(test_wq_init);
module_exit(test_wq_exit);
Expected dmesg output:
1
2
3
4
[ 30.001] CPU 0 (kworker/0:1): first item
[ 30.002] CPU 0 (kworker/0:1): second item
[ 30.003] flush_work returned true: waited for work2 to finish
[ 30.004] init complete — both work items are done
flush_work(&deferred_work2.work) blocks the module_init thread until the second work item finishes. Since work items execute in FIFO order on the same pool, by the time work2 finishes, work1 has already finished too. flush_work() returns true because it actually waited (the work was still pending or executing when flush_work() was called). Use this pattern when you need ordering — “do X, then do Y after X finishes” — rather than cleanup.
Complete Work Item Lifecycle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Work Item Lifecycle — End-to-End │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ 1. INIT │
│ INIT_WORK(&dev->work, handler) │
│ → data=0, entry=empty, func=handler │
│ → PENDING = 0 │
│ │
│ 2. QUEUE │
│ schedule_work(&dev->work) / queue_work(wq, &dev->work) │
│ → PENDING = 1 (atomic test-and-set) │
│ → data = pwq pointer | flags │
│ → entry linked into pool->worklist │
│ → kick_pool() wakes idle kworker │
│ │
│ 3. WAIT │
│ work sits on pool->worklist until a kworker picks it up │
│ (FIFO order within the pool) │
│ │
│ 4. EXECUTE │
│ process_one_work(): │
│ → worker added to busy_hash │
│ → work removed from worklist │
│ → PENDING = 0 (cleared BEFORE handler call) │
│ → pool lock released │
│ → handler(work) called in process context │
│ → handler can re-queue this work (PENDING is 0) │
│ → pool lock re-acquired │
│ → worker removed from busy_hash │
│ → pwq_dec_nr_in_flight() may activate inactive work │
│ │
│ 5. IDLE │
│ work_struct is dormant again │
│ → data = pool ID (off-queue encoding) │
│ → PENDING = 0 │
│ → can be re-queued with queue_work() │
│ │
│ 6. CLEANUP (module exit) │
│ cancel_work_sync(&dev->work) │
│ → dequeues if pending, waits if executing │
│ → safe to free the containing structure after this returns │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
End-to-End Under the Hood: From INIT_WORK to Handler Execution
This section traces the complete internal path of a work item through the workqueue subsystem — from creation, through queueing with per-CPU pwq lookup, to execution by a kworker. Every function call, every data structure access, every lock acquisition.
Phase 1: Creating the Work Item — INIT_WORK
1
INIT_WORK(&dev->work, my_handler);
This is a pure initialization — no locks, no allocations, no scheduling. The macro at include/linux/workqueue.h, lines 269–275 expands to three stores:
1
2
3
4
5
6
(_work)->data = (atomic_long_t) WORK_DATA_INIT();
/* = WORK_STRUCT_NO_POOL (0xFFFFFFE0) | PENDING=0 */
INIT_LIST_HEAD(&(_work)->entry);
/* = entry.next = entry.prev = &entry (empty circular list) */
(_work)->func = (_func);
/* = pointer to the handler function */
After INIT_WORK, the work item is dormant — it exists in memory but is not associated with any workqueue, pool, or worker. The WORK_STRUCT_NO_POOL sentinel in the data field indicates “not queued anywhere.” The PENDING bit (bit 0) is 0, meaning queue_work() will accept it.
Phase 2: Queueing the Work — queue_work() Under the Hood
1
queue_work(wq, &dev->work); /* or: schedule_work(&dev->work) */
The full internal call chain:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
┌─────────────────────────────────────────────────────────────────────────────────┐
│ QUEUEING PATH — Complete Internal Trace │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ ① queue_work(wq, &work) │
│ │ [include/linux/workqueue.h] │
│ │ Calls queue_work_on(WORK_CPU_UNBOUND, wq, &work) │
│ │ WORK_CPU_UNBOUND = NR_CPUS (special value meaning "pick CPU for me") │
│ │ │
│ ② queue_work_on(cpu, wq, &work) │
│ │ [kernel/workqueue.c, lines 2448-2454] │
│ │ │
│ ├── local_irq_save(flags) │
│ │ → Disables local IRQs, saves IRQ state │
│ │ → Prevents this CPU from being interrupted mid-queue │
│ │ │
│ ├── test_and_set_bit(WORK_STRUCT_PENDING_BIT, work_data_bits(work)) │
│ │ → ATOMIC operation (LDXR/STXR on ARM64, LOCK BTS on x86) │
│ │ → Returns OLD value of bit 0: │
│ │ was 0 → set to 1, proceed (work was idle) │
│ │ was 1 → return false (work already queued, bail out) │
│ │ │
│ ├── clear_pending_if_disabled(work) │
│ │ → If work has disable depth > 0, clear PENDING and abort │
│ │ │
│ ├── __queue_work(cpu, wq, &work) ← THE REAL WORK │
│ │ │
│ └── local_irq_restore(flags) │
│ → Re-enables IRQs │
│ │
│ ③ __queue_work(cpu, wq, &work) │
│ │ [kernel/workqueue.c, lines 2359-2430] │
│ │ │
│ │ ┌─────────────────────────────────────────────────────────────┐ │
│ │ │ STEP A: Determine the CPU │ │
│ │ ├─────────────────────────────────────────────────────────────┤ │
│ │ │ │ │
│ │ │ if (cpu == WORK_CPU_UNBOUND) { │ │
│ │ │ if (wq->flags & WQ_UNBOUND) │ │
│ │ │ cpu = wq_select_unbound_cpu(raw_smp_processor_id) │ │
│ │ │ else │ │
│ │ │ cpu = raw_smp_processor_id() ← CURRENT CPU │ │
│ │ │ } │ │
│ │ └─────────────────────────────────────────────────────────────┘ │
│ │ │
│ │ ┌─────────────────────────────────────────────────────────────┐ │
│ │ │ STEP B: Look up the per-CPU pool_workqueue (pwq) │ │
│ │ ├─────────────────────────────────────────────────────────────┤ │
│ │ │ │ │
│ │ │ pwq = per_cpu_ptr(wq->cpu_pwq, cpu) │ │
│ │ │ │ │
│ │ │ This is THE key lookup. wq->cpu_pwq is a per-CPU │ │
│ │ │ pointer that was set up when the workqueue was created. │ │
│ │ │ Each CPU's pwq points to the correct worker_pool: │ │
│ │ │ - Per-CPU normal wq → per-CPU normal pool (nice=0) │ │
│ │ │ - Per-CPU highpri wq → per-CPU highpri pool (nice=-20) │ │
│ │ │ - Unbound wq → unbound pool for this CPU's NUMA node │ │
│ │ └─────────────────────────────────────────────────────────────┘ │
│ │ │
│ │ ┌─────────────────────────────────────────────────────────────┐ │
│ │ │ STEP C: Get the worker_pool from the pwq │ │
│ │ ├─────────────────────────────────────────────────────────────┤ │
│ │ │ │ │
│ │ │ pool = pwq->pool │ │
│ │ │ │ │
│ │ │ pwq is the BRIDGE — it connects the abstract workqueue │ │
│ │ │ to the concrete pool of threads that will do the work. │ │
│ │ │ The pool has the worklist, the workers, and the locks. │ │
│ │ └─────────────────────────────────────────────────────────────┘ │
│ │ │
│ ├── raw_spin_lock(&pool->lock) │
│ │ → Lock the target pool (protects worklist and worker state) │
│ │ │
│ │ ┌─────────────────────────────────────────────────────────────┐ │
│ │ │ STEP D: Non-reentrance check │ │
│ │ ├─────────────────────────────────────────────────────────────┤ │
│ │ │ │ │
│ │ │ worker = find_worker_executing_work(pool, work) │ │
│ │ │ → Searches pool->busy_hash for a worker whose │ │
│ │ │ current_work == this work │ │
│ │ │ │ │
│ │ │ If found: this work is currently executing on a different │ │
│ │ │ pool. Queue it on THAT pool instead to guarantee the │ │
│ │ │ work handler never runs concurrently with itself. │ │
│ │ │ pwq = worker->current_pwq │ │
│ │ └─────────────────────────────────────────────────────────────┘ │
│ │ │
│ │ ┌─────────────────────────────────────────────────────────────┐ │
│ │ │ STEP E: Insert work into the worklist │ │
│ │ ├─────────────────────────────────────────────────────────────┤ │
│ │ │ │ │
│ │ │ if (pwq->nr_active < max_active) │ │
│ │ │ insert_work(pwq, work, &pool->worklist) │ │
│ │ │ 1. set_work_pwq(work, pwq, flags) │ │
│ │ │ → work->data = pwq | PENDING | PWQ | color │ │
│ │ │ 2. list_add_tail(&work->entry, &pool->worklist) │ │
│ │ │ → APPENDED TO END OF WORKLIST (FIFO) │ │
│ │ │ 3. get_pwq(pwq) │ │
│ │ │ → pwq->refcnt++ (prevent teardown) │ │
│ │ │ else │ │
│ │ │ list_add_tail(&work->entry, &pwq->inactive_works) │ │
│ │ │ → Throttled: too many active items for this wq/pool │ │
│ │ └─────────────────────────────────────────────────────────────┘ │
│ │ │
│ │ ┌─────────────────────────────────────────────────────────────┐ │
│ │ │ STEP F: Wake a worker to process the work │ │
│ │ ├─────────────────────────────────────────────────────────────┤ │
│ │ │ │ │
│ │ │ kick_pool(pool) │ │
│ │ │ → if (!pool->nr_running && !list_empty(&pool->worklist))│ │
│ │ │ first_idle = first_idle_worker(pool) │ │
│ │ │ wake_up_process(first_idle->task) │ │
│ │ │ → Wakes one idle kworker to start processing │ │
│ │ └─────────────────────────────────────────────────────────────┘ │
│ │ │
│ └── raw_spin_unlock(&pool->lock) │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
The Per-CPU pwq Lookup Visualized
This is the central data structure traversal that routes a work item from a workqueue to a specific pool on a specific CPU:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Per-CPU pwq Lookup — How Work Reaches a Worker Pool │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ queue_work(system_percpu_wq, &work) on CPU 2 │
│ │
│ system_percpu_wq (workqueue_struct) │
│ │ │
│ │ wq->cpu_pwq is a __percpu pointer array: │
│ │ ┌──────────┬──────────┬──────────┬──────────┐ │
│ │ │ cpu_pwq │ cpu_pwq │ cpu_pwq │ cpu_pwq │ │
│ │ │ [CPU 0] │ [CPU 1] │ [CPU 2] │ [CPU 3] │ │
│ │ └────┬─────┴─────┬────┴────┬─────┴─────┬────┘ │
│ │ │ │ │ │ │
│ │ ▼ ▼ ▼ ▼ │
│ │ pwq_0 pwq_1 pwq_2 pwq_3 │
│ │ │ │ │ │ │
│ │ ▼ ▼ ▼ ▼ │
│ │ pool(CPU0) pool(CPU1) pool(CPU2) pool(CPU3) │
│ │ normal normal normal normal │
│ │ │
│ └── per_cpu_ptr(wq->cpu_pwq, 2) → pwq_2 │
│ pwq_2->pool → pool(CPU2, normal) │
│ pool->worklist → [work_X] → [work_Y] → ... → [NEW WORK] │
│ ▲ │
│ │ │
│ list_add_tail() adds here │
│ │
│ The work item is now on CPU 2's normal-priority pool worklist. │
│ A kworker/2:N thread will pick it up. │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Phase 3: Executing the Work — worker_thread() and process_one_work()
After kick_pool() wakes an idle kworker, the worker runs through this path:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
┌─────────────────────────────────────────────────────────────────────────────────┐
│ EXECUTION PATH — Complete Internal Trace │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ ① kworker wakes up in worker_thread() │
│ │ [kernel/workqueue.c, lines 3431-3503] │
│ │ │
│ ├── raw_spin_lock_irq(&pool->lock) │
│ │ │
│ ├── Check WORKER_DIE → no, continue │
│ │ │
│ ├── worker_leave_idle(worker) │
│ │ → Remove from pool->idle_list │
│ │ → pool->nr_idle-- │
│ │ │
│ ② recheck: │
│ ├── need_more_worker(pool)? │
│ │ = !list_empty(&pool->worklist) && !pool->nr_running │
│ │ NO → goto sleep (someone else is handling it) │
│ │ YES → continue │
│ │ │
│ ├── may_start_working(pool)? │
│ │ = pool->nr_idle > 0 │
│ │ NO → manage_workers() → create_worker(pool) → goto recheck │
│ │ YES → continue (there's a backup idle worker) │
│ │ │
│ ③ WORK PROCESSING LOOP: │
│ │ do { │
│ │ work = list_first_entry(&pool->worklist, ...) │
│ │ → PICKS FROM HEAD OF WORKLIST (FIFO — oldest first) │
│ │ │
│ │ assign_work(work, worker, NULL) │
│ │ → Move work to worker->scheduled list │
│ │ │
│ │ process_scheduled_works(worker) │
│ │ └── process_one_work(worker, work) ← see below │
│ │ │
│ │ } while (keep_working(pool)) │
│ │ keep_working = !list_empty(&worklist) && nr_running <= 1 │
│ │ → Keep going if there's more work AND this is the only runner │
│ │ │
│ ④ sleep: │
│ ├── worker_enter_idle(worker) │
│ │ → Add to pool->idle_list, pool->nr_idle++ │
│ │ → Start idle_timer (5 min timeout for destruction) │
│ ├── __set_current_state(TASK_IDLE) │
│ ├── raw_spin_unlock_irq(&pool->lock) │
│ ├── schedule() → CPU runs other tasks, kworker sleeps │
│ └── goto woke_up (when kicked again) │
│ │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ ⑤ process_one_work(worker, work) — INSIDE THE HANDLER EXECUTION │
│ │ [kernel/workqueue.c, lines 3220-3380] │
│ │ │
│ ├── pwq = get_work_pwq(work) ← extract pwq from work->data │
│ │ │
│ ├── hash_add(pool->busy_hash, &worker->hentry, (unsigned long)work) │
│ │ → Register in busy_hash (keyed by work address) │
│ │ → find_worker_executing_work() can now find this worker │
│ │ │
│ ├── worker->current_work = work │
│ ├── worker->current_func = work->func │
│ ├── worker->current_pwq = pwq │
│ │ │
│ ├── list_del_init(&work->entry) ← REMOVE from worklist │
│ │ │
│ ├── if (WQ_CPU_INTENSIVE) │
│ │ worker_set_flags(WORKER_CPU_INTENSIVE) │
│ │ → excluded from nr_running, won't block concurrency mgmt │
│ │ │
│ ├── kick_pool(pool) ← wake another worker if needed │
│ │ │
│ ├── set_work_pool_and_clear_pending(work, pool->id, flags) │
│ │ → CLEARS PENDING BIT (bit 0 → 0) │
│ │ → work->data now encodes pool ID (off-queue format) │
│ │ → FROM THIS POINT: work can be re-queued by another context │
│ │ │
│ ├── raw_spin_unlock_irq(&pool->lock) ◄── POOL LOCK RELEASED │
│ │ │
│ │ ╔═══════════════════════════════════════════════════════════╗ │
│ │ ║ ║ │
│ │ ║ worker->current_func(work) ║ │
│ │ ║ ║ │
│ │ ║ YOUR HANDLER RUNS HERE — IN PROCESS CONTEXT ║ │
│ │ ║ ● Can sleep (mutex_lock, kmalloc GFP_KERNEL, I/O) ║ │
│ │ ║ ● Has its own task_struct (current = kworker thread) ║ │
│ │ ║ ● Pool lock is NOT held — other work can proceed ║ │
│ │ ║ ● If handler blocks, wq_worker_sleeping() fires: ║ │
│ │ ║ nr_running-- → may wake another idle worker ║ │
│ │ ║ ║ │
│ │ ╚═══════════════════════════════════════════════════════════╝ │
│ │ │
│ ├── cond_resched() ← yield if needed (voluntary preempt) │
│ │ │
│ ├── raw_spin_lock_irq(&pool->lock) ◄── POOL LOCK RE-ACQUIRED │
│ │ │
│ ├── hash_del(&worker->hentry) ← remove from busy_hash │
│ ├── worker->current_work = NULL ← clear current state │
│ ├── worker->current_func = NULL │
│ ├── worker->current_pwq = NULL │
│ │ │
│ └── pwq_dec_nr_in_flight(pwq, work_data) │
│ nr_active-- │
│ → if (nr_active < max_active && !list_empty(inactive_works)) │
│ move work from pwq->inactive_works to pool->worklist │
│ → previously throttled work now becomes active │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Complete Data Structure Traversal: One Diagram
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
┌─────────────────────────────────────────────────────────────────────────────────┐
│ The Full Journey of a Work Item │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ PHASE 1: INIT_WORK(&work, handler) │
│ ═══════════════════════════════════ │
│ │
│ work_struct │
│ ┌────────────────────────────────────┐ │
│ │ data = WORK_STRUCT_NO_POOL | 0 │ (PENDING=0, no pool) │
│ │ entry = { &entry, &entry } │ (empty circular list) │
│ │ func = handler │ (function pointer) │
│ └────────────────────────────────────┘ │
│ Dormant. No connection to any pool or workqueue. │
│ │
│ PHASE 2: queue_work(wq, &work) on CPU 2 │
│ ════════════════════════════════════════ │
│ │
│ wq (workqueue_struct) │
│ ┌──────────────────────┐ │
│ │ cpu_pwq (per-CPU) │ │
│ │ [0] [1] [2] [3] │ │
│ └───────────┬──────────┘ │
│ │ per_cpu_ptr(wq->cpu_pwq, 2) │
│ ▼ │
│ pwq (pool_workqueue) │
│ ┌──────────────────────┐ │
│ │ pool ─────────────┐ │ │
│ │ wq ← back to wq │ │ │
│ │ nr_active = 2 │ │ │
│ │ inactive_works │ │ │
│ └────────────────────┼──┘ │
│ │ pwq->pool │
│ ▼ │
│ pool (worker_pool for CPU 2, normal) │
│ ┌──────────────────────────────────────────┐ │
│ │ cpu = 2 │ │
│ │ worklist ──→ [work_X] → [work_Y] → [NEW]│ │
│ │ ▲ │ │
│ │ list_add_tail │ │ │
│ │ nr_running = 0 (triggers kick) │ │ │
│ │ nr_idle = 1 (worker available) │ │ │
│ │ idle_list ──→ [kworker/2:1] │ │ │
│ └──────────────────────────────────────┼───┘ │
│ │ │
│ work.data = pwq | PENDING(1) | PWQ_BIT | color │
│ work.entry linked into pool->worklist tail │
│ kick_pool() → wake_up_process(kworker/2:1) │
│ │
│ PHASE 3: kworker/2:1 executes the work │
│ ═══════════════════════════════════════ │
│ │
│ kworker/2:1 wakes up in worker_thread() │
│ ┌──────────────────────────────────────────┐ │
│ │ worker_leave_idle() │ │
│ │ pool->nr_idle-- → 0 │ │
│ │ │ │
│ │ work = list_first_entry(&pool->worklist) │ │
│ │ → picks work_X first (FIFO from HEAD) │ │
│ │ → eventually reaches NEW work │ │
│ │ │ │
│ │ process_one_work(worker, work): │ │
│ │ hash_add(busy_hash, worker, work) │ │
│ │ list_del_init(&work->entry) │ │
│ │ clear PENDING bit │ │
│ │ UNLOCK pool │ │
│ │ ┌────────────────────────────┐ │ │
│ │ │ handler(work) EXECUTES │ │ │
│ │ │ can sleep, take mutexes │ │ │
│ │ └────────────────────────────┘ │ │
│ │ LOCK pool │ │
│ │ cleanup (hash_del, clear current_*) │ │
│ │ pwq_dec_nr_in_flight() │ │
│ │ │ │
│ │ keep_working()? → process next or sleep │ │
│ └──────────────────────────────────────────┘ │
│ │
│ After handler returns: │
│ work.data = pool_id | flags (off-queue encoding, PENDING=0) │
│ work.entry = empty list (detached) │
│ Work is dormant again — ready to be re-queued. │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
Why the pwq Bridge Exists — The Design Insight
A natural question is: why not have the workqueue point directly to the worker pool? Why the indirection through pool_workqueue?
The answer is that multiple workqueues share the same worker pool, but each workqueue needs its own concurrency limits and accounting. Consider:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
┌─────────────────────────────────────────────────────────────────────────────────┐
│ Why pwq Is Necessary — Per-Workqueue Accounting on Shared Pools │
├─────────────────────────────────────────────────────────────────────────────────┤
│ │
│ Without pwq (hypothetical — would NOT work): │
│ ───────────────────────────────────────────── │
│ system_percpu_wq (max_active=256) ──→ pool(CPU0, normal) │
│ system_long_wq (max_active=256) ──→ pool(CPU0, normal) ← same pool! │
│ my_driver_wq (max_active=1) ──→ pool(CPU0, normal) ← same pool! │
│ │
│ Problem: Where does max_active state live? In the pool? But three │
│ workqueues share it with different limits. In the wq? But each wq │
│ needs per-CPU state. There's no place for it. │
│ │
│ With pwq (actual design): │
│ ───────────────────────── │
│ system_percpu_wq ──→ pwq_A ──→ pool(CPU0, normal) │
│ nr_active=5, max_active=256 │
│ system_long_wq ──→ pwq_B ──→ pool(CPU0, normal) ← same pool │
│ nr_active=3, max_active=256 │
│ my_driver_wq ──→ pwq_C ──→ pool(CPU0, normal) ← same pool │
│ nr_active=1, max_active=1 │
│ │
│ Each pwq maintains ITS OWN nr_active counter and inactive_works list. │
│ my_driver_wq is limited to 1 active item on this CPU, even though │
│ the same pool serves hundreds of items from other workqueues. │
│ │
│ pwq exists because: │
│ 1. Pools are shared → per-wq state needs its own structure │
│ 2. Limits are per-wq-per-CPU → (workqueue × CPU) = pwq │
│ 3. inactive_works are per-wq → throttled work is wq-specific │
│ 4. Flush/drain is per-wq → need per-wq accounting of in-flight work │
│ │
└─────────────────────────────────────────────────────────────────────────────────┘
→ Continued in Part 6b (part6_doc_part2.md): Delayed work, RCU work, mod_delayed_work(), custom workqueue creation, workqueue flags, max_active, concurrency patterns, periodic tasks, ordered workqueues, and boot initialization.
